Replacement Parts for Aesculap GT92 Shear (GT92)

Scroll down to view parts list.

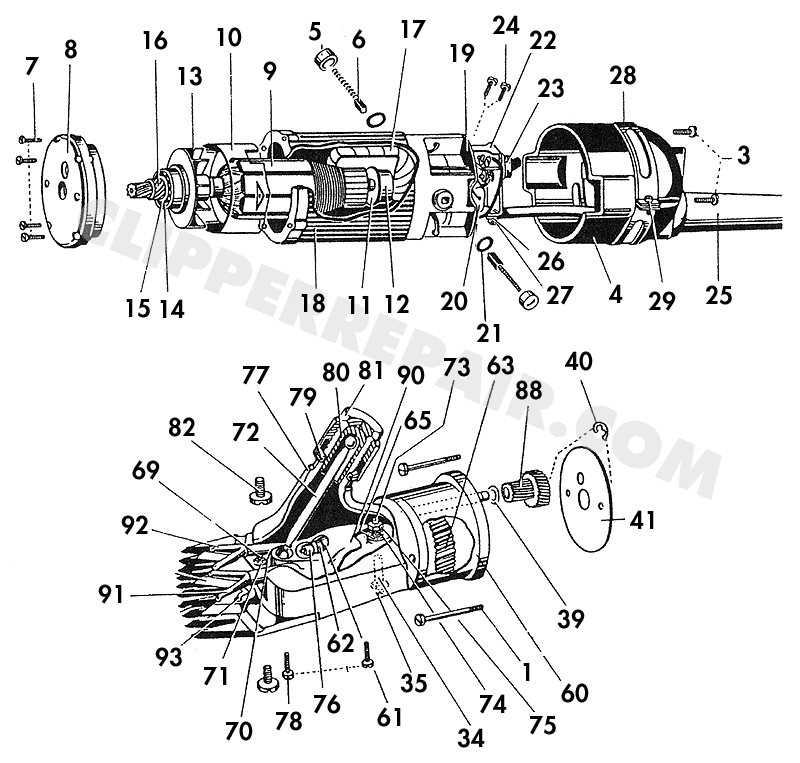

Aesculap GT92 Shear diagram (large) #1
72-01 (Diag.1) Screw
$0.80
72-03 (Diag.3) Fixing Screw
$0.44
72-04 (Diag.4) Protection Cap
$32.16
72-05 (Diag.5) Carbon Cap
$3.50
72-06A (Diag.6) Carbon Brush w/ Spring & Cap
$9.45
72-06 (Diag.6) Carbon Brush w/Spring
$3.68
72-07 (Diag.7) Fixing Screw
$0.44
72-08 (Diag.8) Bearing Plate
$42.00
72-09 (Diag.9) Armature Assembly - (Comes with fan-no bearings)
$196.00
72-10 (Diag.10) Plastic Spacer Sleeve
$2.34
72-11 (Diag.11) Dust Disk
$2.00
72-12 (Diag.12) Ball Bearing
$14.78
72-13 (Diag.13) Fan
$4.85
72-14 (Diag.14) Ball Bearing
$14.78
72-15 (Diag.15) Splash washer/greasing worm
$1.60
72-17 (Diag.17) Field Coil
$127.30
72-18 (Diag.18) Motor Housing
$85.50
72-19 (Diag.19) Connection Plate
$28.08
72-19A (Diag.19) Contact Screw
$0.80
72-20 (Diag.20) Radio Suppressor
$8.62
72-22 (Diag.22) Switch Holder
$5.70
72-23 (Diag.23) Switch
$19.80
72-24 (Diag.24) Fixing Screw
$0.44
72-25 (Diag.25) Cable Protector Sleeve
$6.44
72-25A (Diag.25) Cable with Plug
$39.50
72-26 (Diag.26) Cable Clip
$2.84
72-27 (Diag.27) Fixing Screw
$0.44
72-28 (Diag.28) Air Filter
$20.10
72-29 (Diag.29) Locking Screw
$0.44
72-60 (Diag.60) Cutterhead Housing
$118.80
72-61 (Diag.61) Crankshaft Bushing
$72.00
72-61A (Diag.61) Felt Ring
$1.20
72-61B (Diag.61) O Ring
$0.80
72-62 (Diag.62) Crankshaft
$57.50
72-63 (Diag.63) Gear Wheel
$25.00
72-65 (Diag.65) Fork Seat
$10.88
72-69 (Diag.69) Screw for Retaining Spring
$0.44
72-70 (Diag.70) Spring for Pressing Rod
$2.40
72-71 (Diag.71) Hex Nut
$0.38
72-72 (Diag.72) Pressing Rod
$12.74
72-73 (Diag.73) Fork Assembly Bolt
$15.38
72-74 (Diag.74) Toothed Disk
$0.38
72-75 (Diag.75) Hex Nut
$0.38
72-76 (Diag.76) Crank Roller
$18.00
72-77 (Diag.77) Cover for Housing
$47.24
72-78 (Diag.78) Screw for Casing
$0.68
72-79 (Diag.79) Spring Ring
$3.74
72-80 (Diag.80) Thrust Bearing Sleeve
$27.74
72-81 (Diag.81) Regulating Nut
$14.62
72-82 (Diag.82) Locking Screw
$1.42
72-88 (Diag.88) Pinion with Disk
$37.50
72-90 (Diag.90) Fork Assembly
$78.75
72-91 (Diag.91) Yoke - Left
$33.50
72-92 (Diag.92) Yoke - Right
$33.50
72-93 (Diag.93) Retaining Spring
$7.88
