Replacement Parts for Lister Showman Rechargeable Clipper (258-34580)

Scroll down to view parts list.

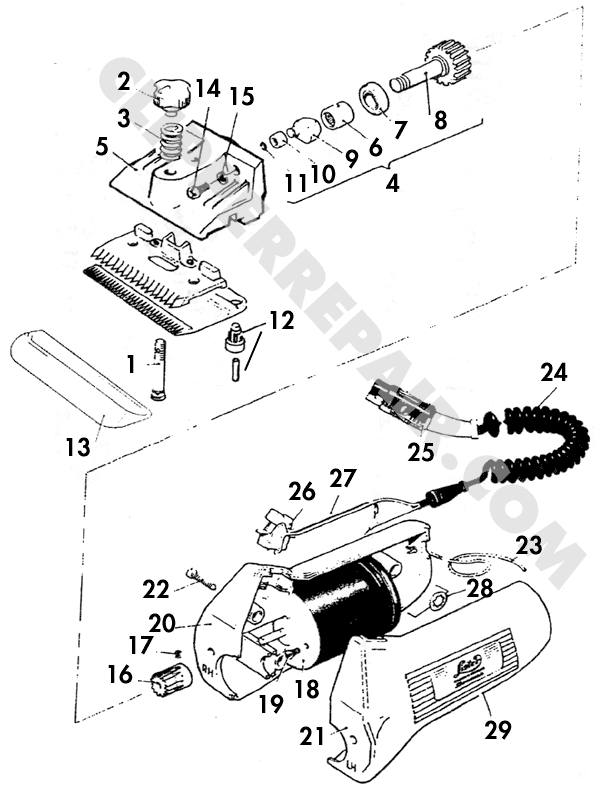

Lister Showman Rechargeable Clipper diagram (large) #1
252-00009 (Diag.1) Tension Bolt
$3.22
258-33710 (Diag.2) Tension Nut
$8.00
258-10061 (Diag.3) Tension spring
$3.00
258-33361 (Diag.4) Clipper Head Assembly
$115.62
258-33351 (Diag.5) Head Housing
$70.88
258-11730 (Diag.6) Needle Bearing
$15.36
249-12250 (Diag.7) Bearing
$14.02
258-30820 (Diag.8) Gear & Shaft Assembly
$69.60
258-00061 (Diag.9) Crank Head
$48.42
258-00057 (Diag.10) Crank Roller
$28.94
258-00062 (Diag.11) Crank Roller Spring
$0.94
258-30850 (Diag.12) Comb Peg with Metal Pin
$2.56
258-30830 (Diag.13) Blade Protector
$5.70
258-30760 (Diag.14) Screw- Head to Motor
$0.82
258-11740 (Diag.15) Spring Washer- Head to Motor Screw
$3.22
258-31510 (Diag.16) Pinion
$18.50
258-30070 (Diag.17) Grubscrew
$21.42
258-30041 (Diag.18) 12 volt DC Motor
$121.35
258-30261 (Diag.24) Clipper Cable Assembly
$41.44
258-30170 (Diag.25) 3 Way DIN Plug
$21.42
258-30130 (Diag.26) Switch
$35.98
