Replacement Parts for Andis Handy Clipper (68010)

Scroll down to view parts list.

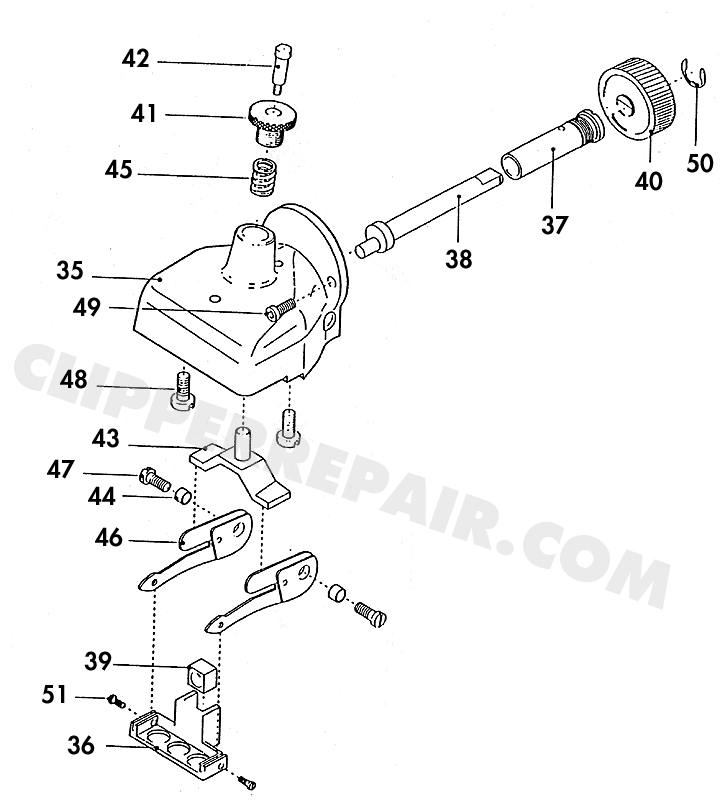

Andis Handy Clipper diagram (large) #1 Andis Handy Clipper diagram (large) #2

701-801 (Diag.1) Motor Housing
$46.14
701-803 (Diag.2) Gear Box
$15.20
701-805 (Diag.3) Switch housing
$19.00
701-806 (Diag.4) Lower Switch Housing
$9.54
701-807 (Diag.5) Air Filter
$12.75
701-808 (Diag.6) Armature Fan
$5.58
701-838 (Diag.7) Rotor (Armature)
$236.16
701-812 (Diag.8) Capacitor
$10.10
701-817 (Diag.9) Air Stream Leading Piece
$6.86
701-818 (Diag.10) Distance Brush
$1.04
701-820 (Diag.11) Fillister Head Screw- Fields
$0.70
701-839 (Diag.12) Stator (Fields)
$97.06
701-824 (Diag.13) Fillister Head Screw- Gearbox
$0.44
701-825 (Diag.14) Nylon Cord
$11.24
701-610 (Diag.15) Centering Piece
$16.30
701-612 (Diag.16) Seal
$10.14
701-616 (Diag.17) Washer- Field Screw
$0.40
701-671 (Diag.18) Cable Grip
$1.58
701-619 (Diag.19) Switch Grip
$1.80
701-621 (Diag.20) Retaining Screw- Switch Housing
$2.14
712-111 (Diag.21) Cable Sleeve
$4.76
701-627 (Diag.22) Dust Cover
$4.64
701-631 (Diag.23) Main Switch
$26.92
701-633 (Diag.24) Brush/Spring/Protection Cap (SET OF TWO)
$18.42
701-634 (Diag.25) Brush Cap
$1.64
701-635 (Diag.26) Ball Bearing
$14.52
701-636 (Diag.27) Ball Bearing
$13.72
701-637 (Diag.28) Spring Disc
$0.94
701-638 (Diag.29) Spring Disc
$0.94
701-639 (Diag.30) Circlip (Retaining Ring)
$0.86
701-640 (Diag.31) Screw- Switch Hsg./Cable Grip
$0.62
701-641 (Diag.32) Screw- Air Filter/Switch Hsg.
$0.44
701-642 (Diag.33) Screw- Switch Grip
$2.74
701-679 (Diag.34) Cable with Plug- Original Equip.
$42.66
BLDFT16225 (Diag.34) Hemp's Super Clipper Cord
$25.00
706-501 (Diag.35) Clipper Head Casing
$64.20
706-503 (Diag.36) Cutter Driving Carrier (Yoke)
$68.00
706-505 (Diag.37) Crank Spindle Sleeve
$15.84
706-506 (Diag.38) Crank Spindle (Crankshaft)
$16.10
706-507 (Diag.39) Crank Drive Block
$6.90
701-830 (Diag.40) Cog
$23.16
706-509 (Diag.41) Tension Screw
$8.42
706-510 (Diag.42) Distance Screw
$4.02
706-511 (Diag.43) Pressure Plate
$8.68
706-514 (Diag.44) Centering Ring- Head Springs
$2.00
706-517 (Diag.45) Spiral Spring
$2.70
706-518 (Diag.46) Laminated Springs
$14.22
706-520 (Diag.47) Screw- Head Spring
$0.62
706-521 (Diag.48) Blade Screw
$1.40
706-523 (Diag.49) Screw- Head to Motor
$1.46
706-524 (Diag.50) Circlip Benzing (E-Clip)
$1.26
706-525 (Diag.51) Screw- Drive Yoke
$1.62
