Replacement Parts for Aesculap GT 474 Clipper (GT474)

Scroll down to view parts list.

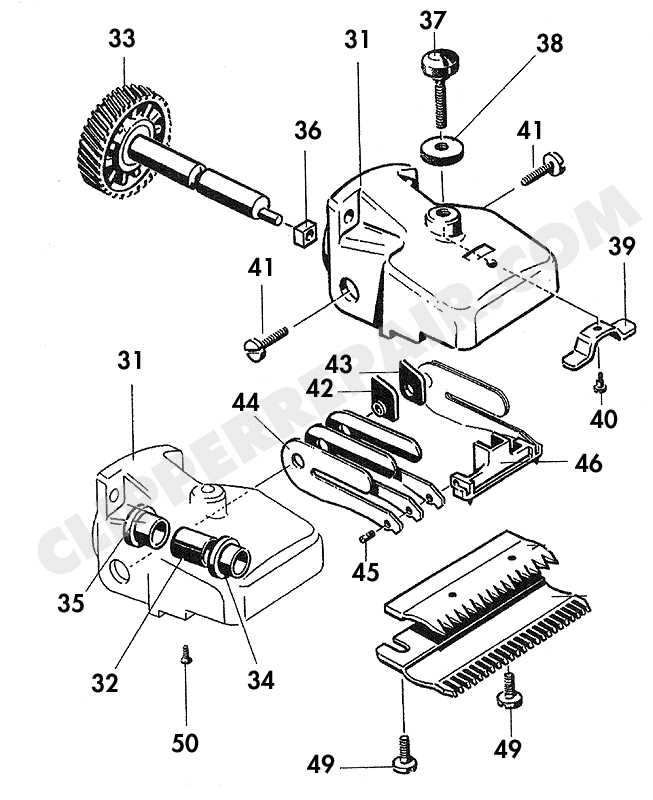

Aesculap GT 474 Clipper diagram (large) #1 Aesculap GT 474 Clipper diagram (large) #2

474-01 (Diag.1) Motor Housing
$40.50
474-02 (Diag.2) Nut
$1.62
474-03 (Diag.3) Motor Crowl
$17.10
474-04 (Diag.4) Air Filter
$5.22
474-07 (Diag.7) Retaining Screw
$0.90
474-08 (Diag.8) Cable Sleeve
$6.84
474-09 (Diag.9) Armature
$243.00
474-10 (Diag.10) Fan
$6.30
474-11 (Diag.11) Ball Bearing on Fan
$16.20
474-12 (Diag.12) Ball Bearing on Collector
$16.20
474-13 (Diag.13) Screw
$0.90
474-14 (Diag.14) Sliding Switch
$2.70
474-15 (Diag.15) Bearing Shell
$21.60
474-16 (Diag.16) Circuit Board, Complete
$93.60
474-17 (Diag.17) Automatic Safety Fuse
$34.20
474-18 (Diag.18) Joint Cable
$4.50
474-19 (Diag.19) Carbon Bush Holder
$11.79
474-20 (Diag.20) Carbon with Wire
$8.10
474-21 (Diag.21) Magnet Frame
$70.20
474-22 (Diag.22) Bearing Insert
$5.40
474-23 (Diag.23) Air Baffle
$2.70
474-25 (Diag.25) Electrical Cord with Plug
$39.75
474-26 (Diag.26) Angled Slide
$5.86
474-27 (Diag.27) Cable Clip
$1.71
474-28 (Diag.28) Raised Head Screw
$0.54
474-29 (Diag.29) Sliding Switch
$31.58
474-31 (Diag.31) Cutter Head Housing
$171.00
474-32 (Diag.32) Central Bushing
$10.80
474-33 (Diag.33) Spur Wheel with Shaft
$45.00
474-34 (Diag.34) Front Bushing
$8.10
474-35 (Diag.35) Rear bushing
$8.10
474-36 (Diag.36) Oscillator Block
$4.95
474-37 (Diag.37) Regulating Screw
$9.00
474-38 (Diag.38) Knurled Nut
$8.38
474-39 (Diag.39) Spring Bridge
$8.28
474-40 (Diag.40) Cylinder Screw
$5.31
474-41 (Diag.41) Screw- Head Spring
$5.10
474-42 (Diag.42) Left Spacer
$7.02
474-43 (Diag.43) Right Spacer
$7.02
474-44 (Diag.44) Oscillator Spring
$3.60
474-45 (Diag.45) Oscillator Screw
$3.50
474-46 (Diag.46) Oscillator Assembly
$101.68
474-49 (Diag.49) Blade Screw
$6.88
474-50 (Diag.50) Countersunk Screw
$0.54
474-51 (Diag.51) Regulating Nut
$21.15
474-52 (Diag.52) Thrust Bearing Sleeve
$26.64
474-53 (Diag.53) Spring Ring
$4.50
474-54 (Diag.54) Housing Cover
$99.00
474-55 (Diag.55) Pressure Rod
$24.30
