Replacement Parts for Andis (ML) Black Master (01795)

Inventory | Specials | Policies | View Cart

Scroll down to view parts list.

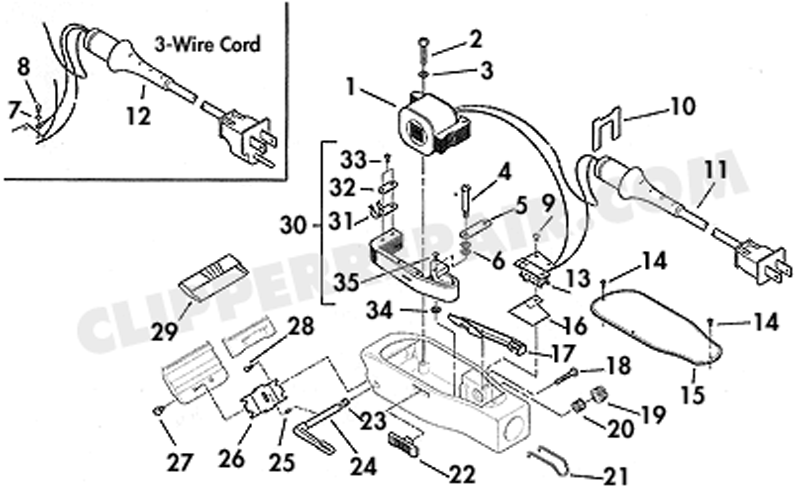

Andis (ML) Black Master diagram #1

S01628 (Diag.1) Field Assembly
$25.46
01160 (Diag.2) Field Mounting Screw
$0.32
01059 (Diag.3) Field Screw Lockwasher
$0.22
03998 (Diag.4) Swivel Stud Screw
$1.32
01077 (Diag.5) Armature Link
$0.34
01070 (Diag.6) Top Swivel Stud Washer
$0.24
01296 (Diag.7) Internal Washer
$1.00
06009 (Diag.8) Ground Screw (used with 3 wire cord)
$0.26
17069 (Diag.9) Mounting Plate Screw
$0.28
01583 (Diag.10) Cord Retaining Clip
$0.54
01643 (Diag.11) 2 Wire Cord - Hardwired/ Non Removable
$12.42
01648 (Diag.12) 3 Wire Cord
$16.36
01767 (Diag.13) Switch Assembly
$4.26
01699 (Diag.14) Cover Screw
$0.30
01629 (Diag.15) Cover / Lid - See Note
$7.43
01639 (Diag.16) Switch Insulation
$0.34
60003 (Diag.17) Actuating Arm
$0.72
02048 (Diag.18) Adjusting Screw
$0.82
01716 (Diag.19) Stabilizer Screw
$2.24
02047 (Diag.20) Stabilizer Spring
$0.34
01616 (Diag.21) Hanger Bail
$0.78
60002 (Diag.22) Switch Button
$0.60
03001 (Diag.23) Adjusting Lever Tension Spring
$0.26
01626 (Diag.24) Adjusting Lever
$10.64
03005 (Diag.25) Ball Pin
$0.74
01581 (Diag.26) Blade Pad and Guide Assembly
$8.16
01053 (Diag.27) Lower Blade Screw (2 Required)
$0.32
17808 (Diag.28) Blade Pad Assbly. Screw
$0.32
75296 (Diag.29) Blade Guard
$0.92
S01641 (Diag.30) Armature Assembly
$32.26
01400 (Diag.31) Connector Fork
$2.82
01213 (Diag.32) Connector Fork Washer
$0.22
03537 (Diag.33) Connector Fork Screw
$0.32
03021 (Diag.34) Bottom Swivel Stud Washer
$0.28
13079 (Diag.35) Armature Adjustment Screw
$0.66
200348 (Diag.36) Lower Housing - Case Sub Assembly (Black)- No Longer Available*See Note
$71.44
