Hemp's Clippers & Supply : Clipper Replacement Parts : Andis (AGC) Single Speed

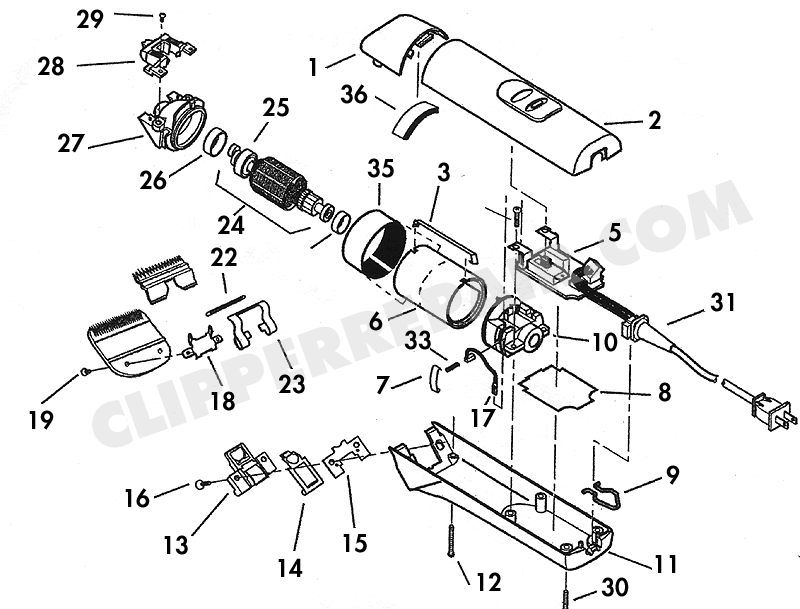

Scroll down to view parts list.

22350-01A	(Diag.1) Drive Cap New Style (Black) *See Note	$7.74
22350-02	(Diag.2) Housing - Upper (Black) Still Available	$11.40
22350-02A	(Diag.2) Housing Service Kit *See Note	$22.28
27198	(Diag.3) Retaining Clip - Motor Frame	$0.42
65828	(Diag.4) Screw- Circuit Board / Switch Assembly	$0.32
22682	(Diag.5) Circuit Board / Switch Assembly	$17.20
27352	(Diag.6) Field Assembly	$37.22
65805	(Diag.7) Retaining Clip - Brush	$0.42
25061	(Diag.9) Hanger Bail - ( Before 7/3/03)	$0.48
22267	(Diag.9) Hanger Bail- (After 7/3/03)	$0.54
64945	(Diag.10) Motor Frame - Rear	$5.98
22350-11A	(Diag.11) Housing Service Kit *See Note	$22.28
65253	(Diag.11) Lower Housing - Black	$4.21
64606	(Diag.12) Screw - Front Housing	$0.34
S63897	(Diag.13) Hinge Assembly	$20.00
64537	(Diag.14) Blade Lock / Latch	$1.68
64535	(Diag.15) Lock keeper	$1.26
27864	(Diag.16) Screw - Hinge	$0.32
27847	(Diag.17) Carbon Brush w/ Shunt	$2.49
64003	(Diag.18) Blade Bracket / Socket	$1.68
64139	(Diag.19) Screw - Blade (2 Required)	$0.66
64027	(Diag.22) Guide - Blade	$0.22
64013	(Diag.23) Tension Spring - Blade	$1.16
27072	(Diag.24) Armature Assembly (Metal Cam)	$75.44
27251	(Diag.25) Metal Cam and Bearing Assembly- No Longer Available	$11.79
21068	(Diag.26) Bearing Cup - Large	$0.48
65013	(Diag.27) Motor Frame - Front	$5.86
20659	(Diag.28) Blade Drive Assembly	$8.68
15766	(Diag.29) Screw - Blade Drive	$0.32
22086	(Diag.30) Screw - Rear Housing	$0.46
64250	(Diag.31) Cord Set (14Ft.)	$17.20
21067	(Diag.32) Bearing Cup - Small	$0.32
65806	(Diag.33) Brush Spring - (2 Required)	$0.28
60083	(Diag.35) Oil Seal	$0.91
17091	(Diag.36) Foam Pad- Drive Cap	$0.90
562036	(Diag.37) Motor assembly - Complete *See Description for components	$100.00

Replacement Parts for Andis (AGC) Single Speed (22350)
