Replacement Parts for Aesculap Favorita II (GT101)

Scroll down to view parts list.

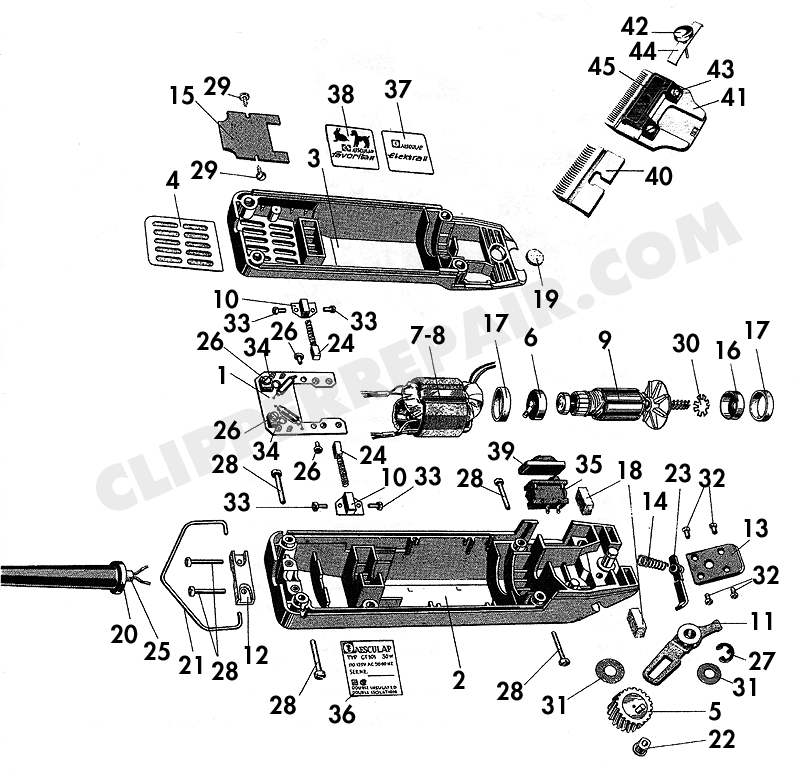

Aesculap Favorita II diagram (large) #1
101-01 (Diag.1) Conductor Plate
$97.20
101-02 (Diag.2) Motor Bottom Housing
$52.20
101-03 (Diag.3) Motor Top Housing
$21.60
101-04 (Diag.4) Air Filter
$8.10
101-05 (Diag.5) Worm Wheel
$68.40
101-06 (Diag.6) Ball Bearing Bushing
$27.00
101-07 (Diag.7) Field Coil
$154.80
101-09 (Diag.9) Armature
$252.00
101-09A (Diag.9) Front Armature Bearing
$18.00
101-09B (Diag.9) Rear Armature Bearing
$16.20
101-10 (Diag.10) Brush Holder
$5.40
101-11 (Diag.11) Oscillating Arm
$16.20
101-12 (Diag.12) Cable Clip
$0.95
101-13 (Diag.13) Swallow Tail
$70.20
101-14 (Diag.14) Spring Ring
$1.35
101-15 (Diag.15) Insulating Plate
$1.71
101-16 (Diag.16) Ball Bearing Bushing
$10.80
101-17 (Diag.17) Rubber Ring
$3.42
101-18 (Diag.18) Oil Felt
$0.54
101-19 (Diag.19) Felt Disk
$0.54
101-20 (Diag.20) Cable Protector Sleeve
$6.30
101-21 (Diag.21) Suspension Bracket
$2.70
101-22 (Diag.22) Slide Ring
$1.71
101-23 (Diag.23) Lever
$26.10
101-24 (Diag.24) Carbon Brush w/Spring
$4.04
101-25 (Diag.25) Cord Assembly w/Plug
$27.00
101-26 (Diag.26) Screw- Conductor Plate
$0.54
101-27 (Diag.27) Locking Washer
$0.95
101-28 (Diag.28) Screw- Housing
$0.90
101-29 (Diag.29) Screw- Insulating Plate
$0.54
101-30 (Diag.30) Star Spring
$1.50
101-31 (Diag.31) Disks
$0.90
101-32 (Diag.32) Screw- Swallow Tail
$0.90
101-38 (Diag.33) Screw- Brush Holder
$0.54
101-34 (Diag.34) Terminal Connector
$0.38
101-35 (Diag.35) Switch
$8.55
101-36 (Diag.36) Adhesive Lable (Bottom)
$7.00
101-38 (Diag.38) Adhesive Lable (Top)
$4.00
101-39 (Diag.39) Rubber Protection for Switch
$4.00
101-42 (Diag.42) Knurled Screw
$4.50
101-43 (Diag.43) Cylinder Screw
$0.90
101-44 (Diag.44) Plate Spring
$4.50
101-45 (Diag.45) Pressure Plate (Plastic)
$4.50
