Replacement Parts for Andis (BGC) Excel Single Speed Clipper (22310)

Scroll down to view parts list.

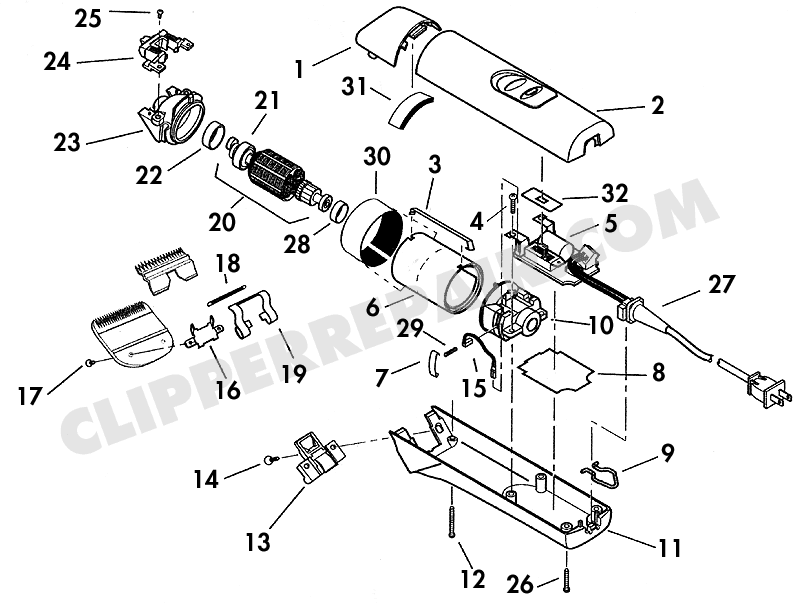

Andis (BGC) Excel Single Speed Clipper diagram (large) #1
65554 (Diag.1) Drive Cap- Burgundy
$4.18
22963 (Diag.2) Upper Housing- Excel- No Longer Available
$11.92
27198 (Diag.3) Motor Frame Clip
$0.42
65828 (Diag.4) Screw- Switch Board Assbly.
$0.32
22682 (Diag.6) Switch & Circ. Board Assbly
$11.68
65805 (Diag.7) Brush Retaining Clip
$0.42
64965 (Diag.8) Insulator
$1.10
22267 (Diag.9) Hanger Bail
$0.48
64945 (Diag.10) Rear Motor Frame
$2.20
65284 (Diag.11) Lower Housing- Excel
$8.18
64606 (Diag.12) Front Housing Screw (Long)
$0.34
28194 (Diag.13) Hinge Assembly (Oster 76,89 Compatible)
$12.70
27864 (Diag.14) Blade Hinge Screw
$0.32
27847 (Diag.15) Brush with Shunt
$1.80
64003 (Diag.16) Blade Bracket (Socket)
$2.44
64139 (Diag.17) Blade Screw
$0.66
64027 (Diag.18) Blade Guide
$0.77
64013 (Diag.19) Tension Spring
$1.40
21977 (Diag.20) Armature Assembly (plastic cam)
$70.42
27854 (Diag.21) Plastic Cam & Bearing Assembly
$24.62
21068 (Diag.22) Large Bearing Cap
$0.03
65013 (Diag.23) Front Motor Frame
$2.80
S20656 (Diag.24) Blade Drive Assembly
$9.88
15766 (Diag.25) Blade Drive Screw
$0.32
22086 (Diag.26) Rear Housing Screw (Short)
$0.46
26049 (Diag.27) Cord Set
$6.74
21067 (Diag.28) Small Bearing Cup
$0.32
65806 (Diag.29) Brush Spring
$0.28
60083 (Diag.30) Oil Seal
$1.10
17091 (Diag.31) Self Adhesive Foam Pad
$0.28
21063 (Diag.32) Insulator- Switch
$0.48
