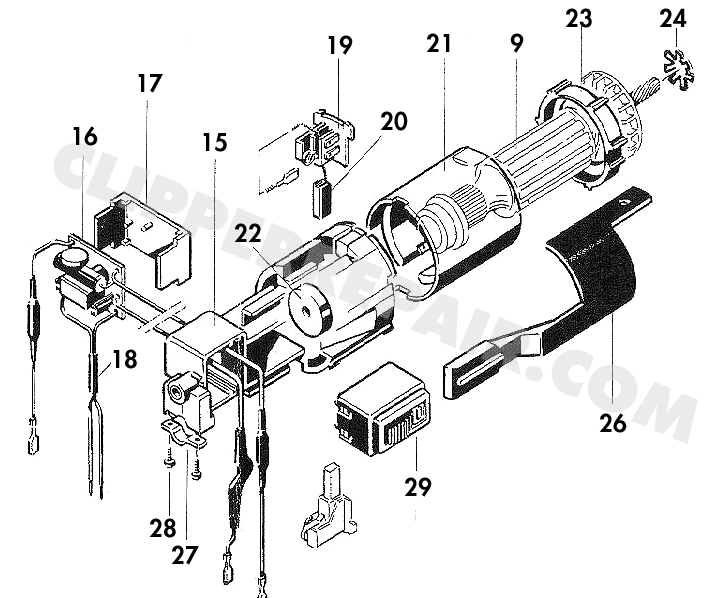

Replacement Parts for Aesculap GT374 Clipper (GT374)
374-01
(Diag. #1) Motor Housing
$54.81
374-02
(Diag. #2) Threaded ring
$8.51
374-03
(Diag. #3) Motor cowl
$17.01
374-04
(Diag. #4) Filter cowl
$34.02
374-05
(Diag. #5) Screw
$0.95
374-06
(Diag. #6) Retaining Clip
$0.85
374-07
(Diag. #7) Retaining Screw
$0.95
374-08
(Diag. #8) Cable Sleeve
$7.18
374-09
(Diag. #9) Armature complete
$199.50
374-09B
(Diag. #9) Front Am Bearing
$22.68
374-09A
(Diag. #9) Rear Am Bearing
$22.68
374-10
(Diag. #10) Armature Fan
$6.62
374-11
(Diag. #11) On/Off Slider - Switch Button
$4.73
374-12
(Diag. #12) On/Off slider screw
$3.59
374-13
(Diag. #13) Head screw
$0.95
374-14
(Diag. #14) Spring washer
$0.76
374-15
(Diag. #15) Bearing shell
$24.57
374-16
(Diag. #16) Platen complete
$122.85
374-17
(Diag. #17) Platen Holder
$2.84
374-18
(Diag. #18) Cord Sleeve
$7.18
374-19
(Diag. #19) Brush Holder
$12.34
374-20
(Diag. #20) Brush
$13.94
374-21
(Diag. #21) Aesculap magnet frame
$73.71
374-22
(Diag. #22) Rear Bearing Bushing
$22.68
374-23
(Diag. #23) Baffle
$2.84
374-24
(Diag. #24) Radial Spring
$2.46
374-25
(Diag. #25) 15ft. Cord Assembly
$41.48
374-26
(Diag. #26) Switch lever
$5.99
374-27
(Diag. #27) Cable clamp
$1.80
374-28
(Diag. #28) Raised Screw
$0.57
374-29
(Diag. #29) Sliding Switch
$33.16

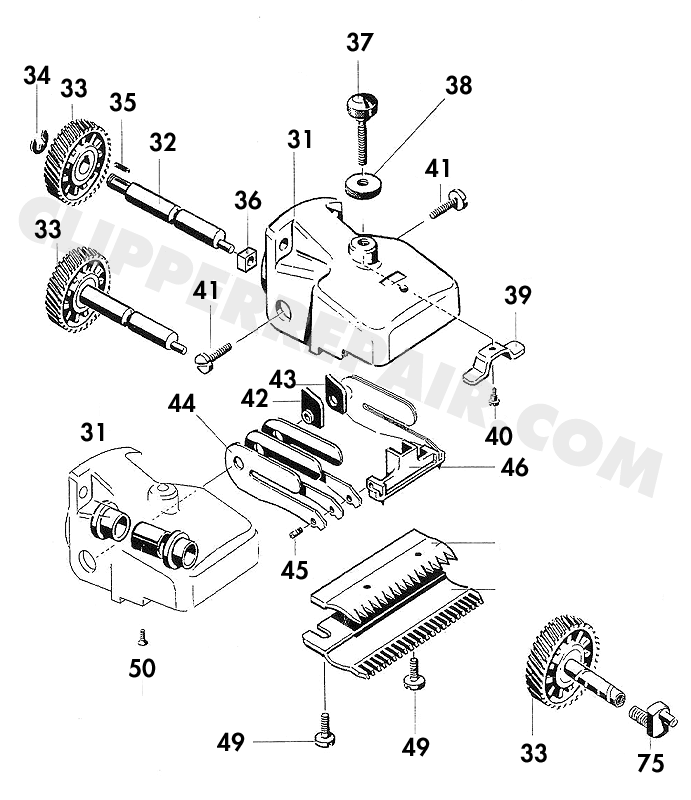

374-31
(Diag. #31) Head Hsg.( Shaft Bushings-Order Separate)
$179.55
374-33
(Diag. #33) Crank gear and Shaft
$49.25
374-34
(Diag. #34) Lock Washer
$0.85
374-35
(Diag. #35) Alignment Spring
$1.89
374-36
(Diag. #36) Oscillator Block
$5.58
374-37
(Diag. #37) Regulating screw
$10.50
374-38
(Diag. #38) Knurled Nut
$11.00
374-39
(Diag. #39) Spring Bridge
$9.59
374-40
(Diag. #40) Fastening screw
$5.58
374-41
(Diag. #41) Head spacer screw
$5.36
374-42
(Diag. #42) Spacer, left
$7.37
374-43
(Diag. #43) Spacer, right
$7.37
374-44
(Diag. #44) Oscillating spring (6 Required)
$4.73
374-45
(Diag. #45) Yoke screw
$3.68
374-46
(Diag. #46) Oscillator / Yoke (No springs attached)
$63.84
374-47
(Diag. #47) Front Bushing - Not numbered on diagram
$10.64
374-48
(Diag. #48) Rear Bushing - Not numbered on diagram
$10.82
374-49
(Diag. #49) Locking Screw for cutter plate
$12.38
374-50
(Diag. #50) Head bushing screw
$0.89
374-51
(Diag. #51) Central Bushing - Not numbered on diagram
$14.18
72-52
(Diag. #52) Locking Screw
$0.79
72-58
(Diag. #58) Spacing Part Left
$17.96
72-59
(Diag. #59) Spacing Part Right
$17.96
