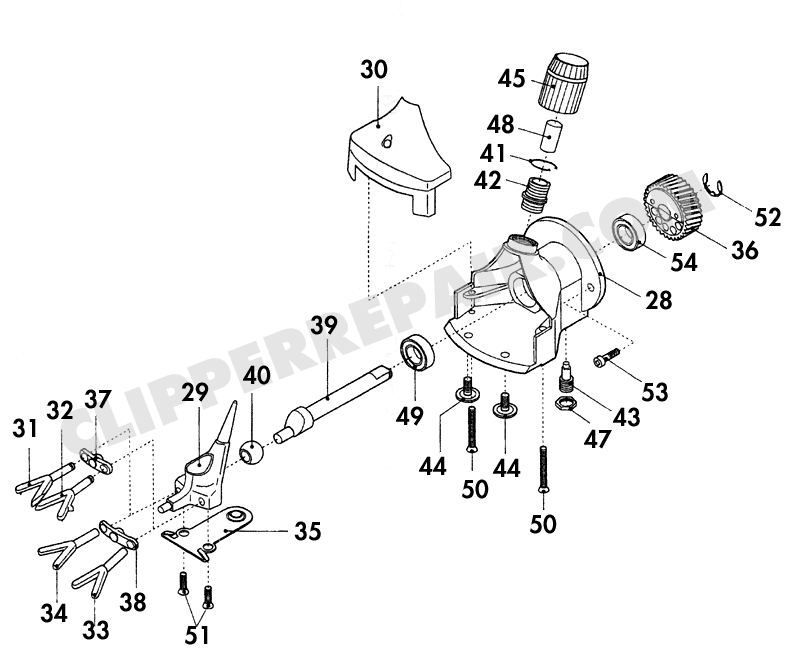

Replacement Parts for Heiniger 12 Volt Battery Sheep Shear (712-100)
712-101
(Diag. #1) Motor Housing
$89.99
701-602
(Diag. #2) Gear Box
$21.80
701-605
(Diag. #4) Lower Switch Housing
$13.44
701-607
(Diag. #5) Air Filter
$12.16
712-102
(Diag. #5) Centering Flange
$13.13
712-103
(Diag. #6) Reduction Gear
$61.35
712-105
(Diag. #7) Connection T-Flex
$0.74
712-106
(Diag. #8) Connection T-Flex
$0.74
712-107
(Diag. #9) Motor with Pinion Shaft
$59.85
712-108
(Diag. #10) Cable Complete w/ Battery clamps
$98.07
701-614
(Diag. #11) Distance Bush
$1.76
712-109
(Diag. #11) Screw- Cable Grip
$0.15
712-110
(Diag. #12) Screw- Centering piece to Motor
$0.15
701-615
(Diag. #12) Spindle
$6.83
701-825
(Diag. #14) Nylon Cord
$11.80
712-112
(Diag. #16) Fan Wheel
$3.29
701-612
(Diag. #16) Seal
$10.65
712-113
(Diag. #17) Air Stream
$5.75
701-616
(Diag. #17) Washer- Field Screw
$0.74
701-671
(Diag. #18) Cable Grip
$1.66
701-619
(Diag. #19) Switch Grip
$1.89
712-111
(Diag. #21) Cable Sleeve
$5.00
701-627
(Diag. #22) Dust Cover
$4.87
701-631
(Diag. #23) Main Switch
$28.27
701-636
(Diag. #27) Ball Bearing
$14.41
701-640
(Diag. #31) Screw- Switch Hsg./Cable Grip
$0.65
701-641
(Diag. #32) Screw- Air Filter/Switch Hsg.
$0.46
701-642
(Diag. #33) Screw- Switch Grip
$2.88
717-708
(Diag. #37) Shear Head Housing
$57.35
717-701
(Diag. #38) Swivelling Fork
$132.34
717-724
(Diag. #39) Housing Cover
$20.24
717-704
(Diag. #40) Prong Right Narrow (Yoke)
$31.56
717-705
(Diag. #41) Prong Left Narrow (Yoke)
$31.56
717-706
(Diag. #42) Prong Left Wide- Standard (Yoke)
$41.87
717-707
(Diag. #43) Prong Right Wide- Standard (Yoke)
$41.87
717-709
(Diag. #44) Tension Link Spring
$30.87
717-711
(Diag. #45) Gear
$27.81
717-712
(Diag. #46) Gauge Plate Narrow
$24.80
717-713
(Diag. #47) Gauge Plate Wide- Standard
$25.47
717-715
(Diag. #48) Crank Spindle
$31.54
717-716
(Diag. #49) Crank Roller
$20.64
706-523
(Diag. #49) Screw- Head to Motor
$1.53
706-524
(Diag. #50) Circlip Benzing (E-Clip)
$1.70
717-717
(Diag. #50) Tension Lock Spring
$1.89
717-718
(Diag. #51) Threaded Bushing
$25.31
717-719
(Diag. #52) Fulcrum Post
$5.61
717-720
(Diag. #53) Comb Screw
$8.23
717-702
(Diag. #54) Tension Nut
$30.79
717-722
(Diag. #55) Locknut
$4.62
717-723
(Diag. #56) Sliding Sleeve
$21.27
717-725
(Diag. #57) Ball Bearing
$29.21
717-726
(Diag. #58) Screw- Head Hsg. Long
$0.82
717-727
(Diag. #59) Screw- Head Hsg. Short
$1.26
