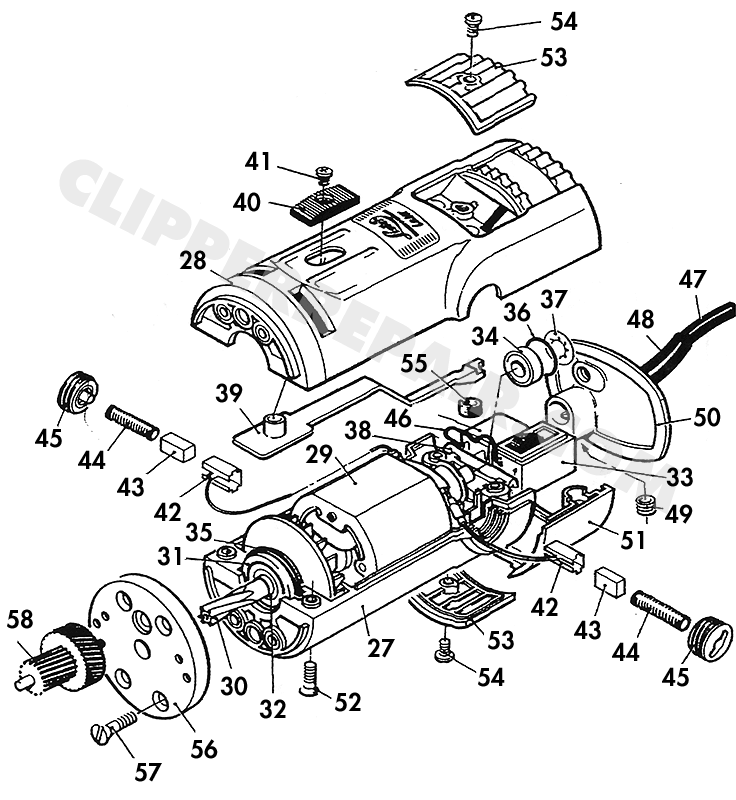

Replacement Parts for Lister Laser 2 Clipper w/Case (258-36640)
258-34890
(Diag. #1) Tension Bolt - Only comes in the tension set now.
$28.47
258-33710
(Diag. #2) Tension Nut
$8.40
258-10061
(Diag. #3) Tension spring
$3.38
258-33361
(Diag. #4) Clipper Head Assembly
$159.34
258-33351
(Diag. #5) Head Housing
$106.33
258-11730
(Diag. #6) Needle Bearing
$16.13
249-12250
(Diag. #7) Bearing
$14.72
258-30820
(Diag. #8) Gear (White) & Shaft Assembly
$87.15
258-32060
(Diag. #8) Screw - Head to Motor (2 Required)
$8.84
258-00061
(Diag. #9) Crank Head
$50.84
258-00057
(Diag. #10) Crank Roller
$30.39
258-00062
(Diag. #11) Crank Roller Spring
$1.83
258-32080
(Diag. #11) Needle Bearing- Intermediate Gear
$2.44
258-30850
(Diag. #12) Comb Peg with Metal Pin (Not Shown)
$3.18
258-32090
(Diag. #12) Gearbox Seal
$5.19
258-11740
(Diag. #15) Spring Washer- Head to Motor Screw
$3.38
258-32630
(Diag. #42) Housing - Motor (Lower)
$46.60
258-32620
(Diag. #43) Housing - Motor (Upper)
$62.90
258-32770
(Diag. #44) Stator (Fields)
$113.05
258-32780
(Diag. #45) Armature
$193.15
258-31080
(Diag. #46) Ball Bearing- Front
$24.17
258-31090
(Diag. #47) Circlip (Retaining Ring)
$1.81
258-32690
(Diag. #48) Switch
$33.85
258-32660
(Diag. #49) Ball Bearing- Rear
$26.50
258-31120
(Diag. #50) O-Ring- Front Bearing
$2.94
258-31130
(Diag. #51) O-Ring- Rear Bearing
$1.39
258-31140
(Diag. #52) Spring Washer / Disc (Rear Bearing)
$1.68
258-32670
(Diag. #54) Actuator - Switch
$7.52
258-31170
(Diag. #55) Button - Switch
$5.63
258-32100A
(Diag. #56) Adapter Plate Assembly (Aluminum)
$53.95
258-31180
(Diag. #56) Screw- Switch Button
$0.90
258-31190
(Diag. #57) Holder - Brush (2 Required)
$3.28
258-31200
(Diag. #58) Brush and Spring (2 Required)
$16.80
258-31210
(Diag. #59) Spring - Brush (2 Required)
$2.39
36640-59
(Diag. #59) Yoke (Black Plastic) - Cutter Blade - Out of Stock No ETA
$2.77
36640-59A
(Diag. #59) Yoke (New Style Metal) - Cutter Blade
$10.37
258-31220
(Diag. #60) Cap - Brush (2 Required)
$9.22
36640-60
(Diag. #60) Screw - Blade Yoke (4 Required)
$0.21
258-32790
(Diag. #61) Overload Switch / Motor Protector
$83.58
258-33910
(Diag. #62) Power Cord
$41.74
258-37070
(Diag. #63) Cord Protector / Strain Relief
$6.62
258-32730
(Diag. #64) Screw - Cord Clamp (2 Required)
$10.19
258-32720
(Diag. #65) End Cover - Rear
$10.96
258-32750
(Diag. #66) Cover - Lower (Rear)
$10.96
258-31290
(Diag. #67) Screw- Motor Housing (4 Required)
$1.22
258-31300
(Diag. #68) Air Filter (2 Required)
$13.74
258-31310
(Diag. #69) Screw - Air Filter (2 Required)
$1.49
258-32680
(Diag. #70) Rubber Grommet
$0.97
258-32140
(Diag. #72) Screw- Adaptor Plate (4 Required)
$0.90
258-32020
(Diag. #73) Gear Assembly - Intermediate / Stepped
$87.15
