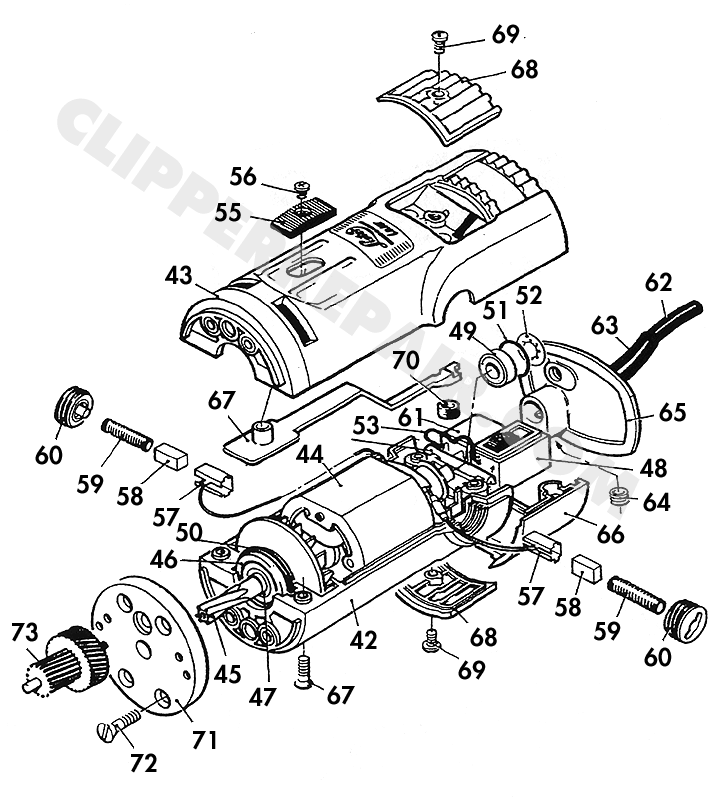

Replacement Parts for Lister Laser Sheep Shear (258-36680)
249-12250
(Diag. #7) Bearing
$14.72
258-30780
(Diag. #7) Screw - Head to Motor (2 Required)
$1.09
249-15100
(Diag. #9) Tension Nut
$53.28
249-00010
(Diag. #10) Sliding Sleeve
$33.82
258-32540
(Diag. #11) Top Casing Assbly- Shear Head (Includes #12- #14)
$85.76
258-32300
(Diag. #12) Top Casing- Shear Head (Case Only)
$63.95
249-15030
(Diag. #13) Threaded Bushing
$37.32
249-00020
(Diag. #14) Tension Lock Ring
$5.59
258-11740
(Diag. #15) Spring Washer- Head to Motor Screw
$3.38
258-32310
(Diag. #15) Tension Pin
$33.66
258-32290
(Diag. #17) Housing - Head (Lower)
$84.75
258-32320
(Diag. #18) Fulcrum Post
$28.86
258-32280
(Diag. #19) Crank Spindle
$57.92
258-32420
(Diag. #20) Circlip (Retaining Ring)
$0.90
258-32430
(Diag. #22) Circlip (Retaining Ring)
$0.86
258-32240
(Diag. #23) Needle Bearing- Crankshaft
$6.38
258-32250
(Diag. #24) Oil Seal
$9.32
258-32220
(Diag. #25) Gear- Crankshaft
$36.39
258-32270
(Diag. #26) Needle Bearing (Intermediate Gear)
$13.48
258-32460
(Diag. #27) Head Seal
$0.86
258-32440
(Diag. #28) Screw- Shear Head (2 Required)
$0.90
157-00151
(Diag. #29) Crank Roller
$40.64
258-32560
(Diag. #30) O-Ring- Head Screw to Motor (2 Required)
$2.60
249-10510
(Diag. #31) Screw - Comb / Blade (2 Required)
$16.84
258-32450
(Diag. #32) Fork Assembly (Includes #33- #37)
$193.52
258-32230
(Diag. #33) Fork
$102.04
249-10210
(Diag. #34) Yoke- Left
$44.35
249-10200
(Diag. #35) Yoke- Right
$44.35
258-32330
(Diag. #36) Retaining Spring- Yoke
$3.55
258-32800
(Diag. #37) Screw- Yoke Retaining Spring
$1.34
258-32340
(Diag. #38) Spring- Tension Pin
$5.57
31040-56
(Diag. #39) Screw - Blade Yoke (4 Required)
$0.21
258-32630
(Diag. #42) Housing - Motor (Lower)
$46.60
258-32620
(Diag. #43) Housing - Motor (Upper)
$62.90
258-32770
(Diag. #44) Stator (Fields)
$113.05
258-32780
(Diag. #45) Armature
$193.15
258-31080
(Diag. #46) Ball Bearing- Front
$24.17
258-31090
(Diag. #47) Circlip (Retaining Ring)
$1.81
258-32690
(Diag. #48) Switch
$33.85
258-32660
(Diag. #49) Ball Bearing- Rear
$26.50
258-31120
(Diag. #50) O-Ring- Front Bearing
$2.94
258-31130
(Diag. #51) O-Ring- Rear Bearing
$1.39
258-31140
(Diag. #52) Spring Washer / Disc (Rear Bearing)
$1.68
258-32670
(Diag. #54) Actuator - Switch
$7.52
258-31170
(Diag. #55) Button - Switch
$5.63
31040-55
(Diag. #55) Yoke (Black Plastic) - Cutter Blade - Out of Stock No ETA
$2.77
31040-55A
(Diag. #55) Yoke (New Style Metal) - Cutter Blade
$10.37
184-10110
(Diag. #56) Screw - Blade Yoke (4 Required)
$0.21
258-31180
(Diag. #56) Screw- Switch Button
$0.90
258-31190
(Diag. #57) Holder - Brush (2 Required)
$3.28
258-31200
(Diag. #58) Brush and Spring (2 Required)
$16.80
258-31210
(Diag. #59) Spring - Brush (2 Required)
$2.39
36640-59
(Diag. #59) Yoke (Black Plastic) - Cutter Blade - Out of Stock No ETA
$2.77
36640-59A
(Diag. #59) Yoke (New Style Metal) - Cutter Blade
$10.37
258-31220
(Diag. #60) Cap - Brush (2 Required)
$9.22
36640-60
(Diag. #60) Screw - Blade Yoke (4 Required)
$0.21
258-32790
(Diag. #61) Overload Switch / Motor Protector
$83.58
258-33910
(Diag. #62) Power Cord
$41.74
258-37070
(Diag. #63) Cord Protector / Strain Relief
$6.62
258-32730
(Diag. #64) Screw - Cord Clamp (2 Required)
$10.19
258-32720
(Diag. #65) End Cover - Rear
$10.96
258-32750
(Diag. #66) Cover - Lower (Rear)
$10.96
258-31290
(Diag. #67) Screw- Motor Housing (4 Required)
$1.22
258-31300
(Diag. #68) Air Filter (2 Required)
$13.74
258-31310
(Diag. #69) Screw - Air Filter (2 Required)
$1.49
258-32680
(Diag. #70) Rubber Grommet
$0.97
258-32100A
(Diag. #71) Adapter Plate Assembly (Aluminum)
$53.95
258-32140
(Diag. #72) Screw- Adaptor Plate (4 Required)
$0.90
258-32020
(Diag. #73) Gear Assembly - Intermediate / Stepped
$87.15
