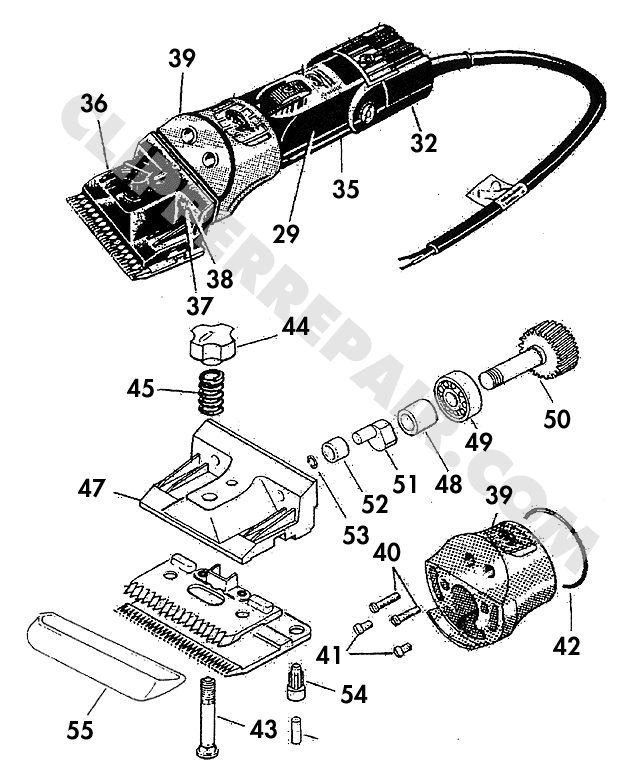

Replacement Parts for Lister Stablemate (258-31040)
258-31040
(Diag. #1) Motor Housing- Lower
$66.38
258-34890
(Diag. #1) Tension Bolt - Only comes in the tension set now.
$28.47
258-31050
(Diag. #2) Motor Housing Top
$66.38
258-33710
(Diag. #2) Tension Nut
$8.40
258-10061
(Diag. #3) Tension spring
$3.38
258-31840
(Diag. #4) Armature - Not Avail. - Send yours in for repair
$209.10
258-33361
(Diag. #4) Clipper Head Assembly
$159.34
258-33351
(Diag. #5) Head Housing
$106.33
258-11730
(Diag. #6) Needle Bearing
$16.13
249-12250
(Diag. #7) Bearing
$14.72
258-31100
(Diag. #7) Circlip (E Clip)
$1.31
258-30780
(Diag. #7) Screw - Head to Motor (2 Required)
$1.09
258-31110
(Diag. #8) Bearing- Rear
$31.65
258-30820
(Diag. #8) Gear (White) & Shaft Assembly
$87.15
258-00061
(Diag. #9) Crank Head
$50.84
258-00057
(Diag. #10) Crank Roller
$30.39
258-00062
(Diag. #11) Crank Roller Spring
$1.83
258-30850
(Diag. #12) Comb Peg with Metal Pin
$3.18
258-31150
(Diag. #12) Shim Washer
$1.47
258-31160
(Diag. #13) Switch Actuator
$22.37
258-30760
(Diag. #14) Screw- Head to Motor
$0.86
258-11740
(Diag. #15) Spring Washer- Head to Motor Screw
$3.38
258-31850
(Diag. #20) Switch Printed Circuit Board - Not Avail. - Send yours in for repair
$68.25
258-31260
(Diag. #23) Cord Clamp
$2.73
258-31270
(Diag. #24) Screw- Cord Clamp
$0.95
258-31280
(Diag. #25) End Cover
$6.74
258-34410
(Diag. #35) Motor Assembly
Out of Stock
258-30740
(Diag. #39) Gearbox (Yellow)
$59.09
31040-56
(Diag. #39) Screw - Blade Yoke (4 Required)
$0.21
258-30750
(Diag. #40) Screw- Gearbox (Long)
$1.09
258-30990
(Diag. #42) O-Ring- Gearbox
$2.18
258-31080
(Diag. #46) Ball Bearing- Front
$24.17
258-31090
(Diag. #47) Circlip (Retaining Ring)
$1.81
258-31120
(Diag. #50) O-Ring- Front Bearing
$2.94
258-31130
(Diag. #51) O-Ring- Rear Bearing
$1.39
258-31140
(Diag. #52) Spring Washer / Disc (Rear Bearing)
$1.68
258-31170
(Diag. #55) Button - Switch
$5.63
31040-55
(Diag. #55) Yoke (Black Plastic) - Cutter Blade - Out of Stock No ETA
$2.77
31040-55A
(Diag. #55) Yoke (New Style Metal) - Cutter Blade
$10.37
184-10110
(Diag. #56) Screw - Blade Yoke (4 Required)
$0.21
258-31180
(Diag. #56) Screw- Switch Button
$0.90
258-31190
(Diag. #57) Holder - Brush (2 Required)
$3.28
258-31200
(Diag. #58) Brush and Spring (2 Required)
$16.80
258-31210
(Diag. #59) Spring - Brush (2 Required)
$2.39
258-31220
(Diag. #60) Cap - Brush (2 Required)
$9.22
258-33910
(Diag. #62) Power Cord
$41.74
258-37070
(Diag. #63) Cord Protector / Strain Relief
$6.62
258-31290
(Diag. #67) Screw- Motor Housing (4 Required)
$1.22
258-31300
(Diag. #68) Air Filter (2 Required)
$13.74
258-31310
(Diag. #69) Screw - Air Filter (2 Required)
$1.49
