Replacement Parts for Aesculap GT374 Clipper (GT374)

Scroll down to view parts list.

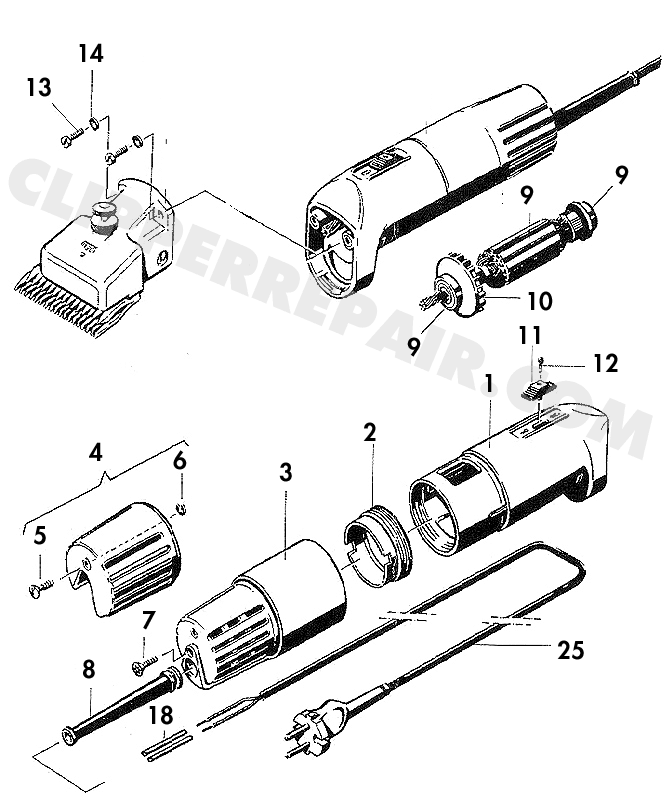

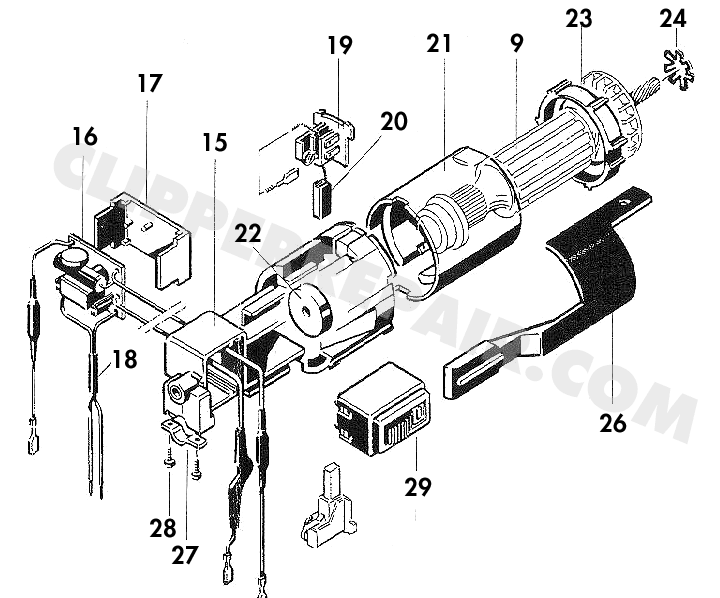

Aesculap GT374 Clipper diagram (large) #1 Aesculap GT374 Clipper diagram (large) #2

Aesculap GT374 Clipper diagram (large) #3

374-01 (Diag.1) Motor Housing
$52.20
374-02 (Diag.2) Threaded ring
$8.10
374-03 (Diag.3) Motor cowl
$16.20
374-04 (Diag.4) Filter cowl
$32.40
374-05 (Diag.5) Screw
$0.90
374-06 (Diag.6) Retaining Clip
$0.81
374-07 (Diag.7) Retaining Screw
$0.90
374-08 (Diag.8) Cable Sleeve
$6.84
374-09 (Diag.9) Armature complete
$190.00
374-09B (Diag.9) Front Am Bearing
$21.60
374-09A (Diag.9) Rear Am Bearing
$21.60
374-10 (Diag.10) Armature Fan
$6.30
374-11 (Diag.11) On/Off slider
$4.50
374-12 (Diag.12) On/Off slider screw
$3.42
374-13 (Diag.13) Head screw
$0.90
374-14 (Diag.14) Spring washer
$0.72
374-15 (Diag.15) Bearing shell
$23.40
374-16 (Diag.16) Platen complete
$117.00
374-17 (Diag.17) Platen Holder
$2.70
374-18 (Diag.18) Cord Sleeve
$6.84
374-19 (Diag.19) Brush Holder
$11.75
374-20 (Diag.20) Brush
$8.10
374-21 (Diag.21) Aesculap magnet frame
$70.20
374-22 (Diag.22) Rear Bearing Bushing
$21.60
374-23 (Diag.23) Baffle
$2.70
374-24 (Diag.24) Radial Spring
$2.34
374-25 (Diag.25) 15ft. Cord Assembly
$39.50
374-26 (Diag.26) Switch lever
$5.70
374-27 (Diag.27) Cable clamp
$1.71
374-28 (Diag.28) Raised Screw
$0.54
374-29 (Diag.29) Sliding Switch
$31.58
374-31 (Diag.31) Head Hsg.( Shaft Bushings-Order Separate)
$171.00
374-33 (Diag.33) Crank gear
$46.90
374-34 (Diag.34) Lock Washer
$0.81
374-35 (Diag.35) Alignment Spring
$1.44
374-36 (Diag.36) Oscillator Block
$4.95
374-37 (Diag.37) Regulating screw
$9.00
374-38 (Diag.38) Knurled Nut
$6.66
374-39 (Diag.39) Spring Bridge
$8.28
374-40 (Diag.40) Fastening screw
$5.31
374-41 (Diag.41) Head spacer screw
$5.10
374-42 (Diag.42) Spacer, left
$7.02
374-43 (Diag.43) Spacer, right
$7.02
374-44 (Diag.44) Oscillating spring
$3.60
374-45 (Diag.45) Yoke screw
$3.15
374-46 (Diag.46) Yoke
$129.60
374-47 (Diag.47) Front Bushing
$5.50
374-48 (Diag.48) Rear Bushing
$5.50
374-49 (Diag.49) Locking Screw for cutter plate
$8.53
374-50 (Diag.50) Head bushing screw
$0.54
374-51 (Diag.51) Oscillator Block
$4.95
72-52 (Diag.52) Locking Screw
$0.75
72-58 (Diag.58) Spacing Part Left
$17.10
72-59 (Diag.59) Spacing Part Right
$17.10
