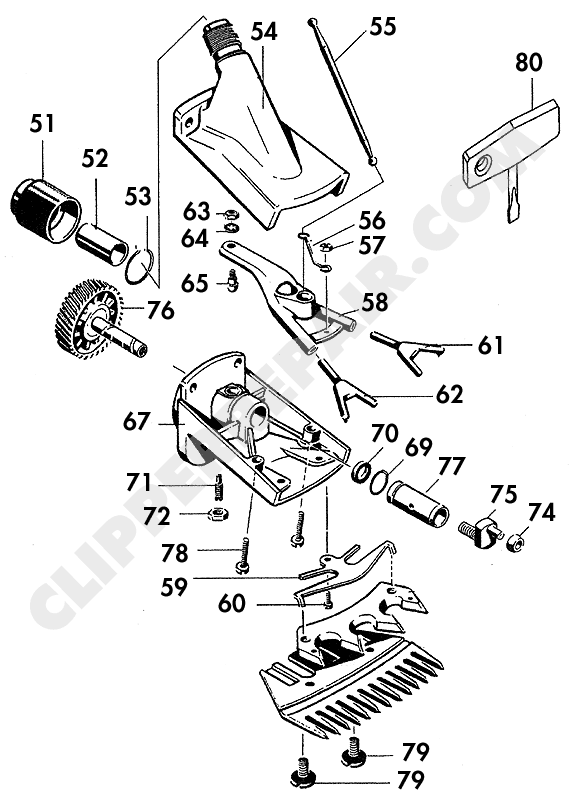

Replacement Parts for Aesculap GT 494 Shear (GT494)
474-01
(Diag. #1) Motor Housing
$53.16
474-02
(Diag. #2) Nut
$1.70
474-03
(Diag. #3) Motor Cowl
$17.96
474-04
(Diag. #4) Air Filter
$5.48
474-07
(Diag. #7) Retaining Screw
$0.95
474-08
(Diag. #8) Cable Sleeve
$7.18
474-09
(Diag. #9) Armature
$255.15
474-10
(Diag. #10) Fan
$6.62
474-11
(Diag. #11) Ball Bearing on Fan
$17.01
474-12
(Diag. #12) Ball Bearing on Collector
$17.01
474-13
(Diag. #13) Screw
$0.95
474-14
(Diag. #14) Sliding Switch
$2.84
474-15
(Diag. #15) Bearing Shell
$22.68
474-16
(Diag. #16) Circuit Board, Complete
$98.28
474-17
(Diag. #17) Automatic Safety Fuse
$35.91
474-18
(Diag. #18) Joint Cable
$4.73
474-19
(Diag. #19) Carbon Bush Holder
$12.38
474-20
(Diag. #20) Carbon with Wire
$13.94
474-21
(Diag. #21) Magnet Frame
$73.71
474-22
(Diag. #22) Bearing Insert
$5.67
474-23
(Diag. #23) Air Baffle
$2.84
474-25
(Diag. #25) Electrical Cord with Plug
$41.74
474-26
(Diag. #26) Angled Slide
$6.15
474-27
(Diag. #27) Cable Clip
$1.80
474-28
(Diag. #28) Raised Head Screw
$0.57
474-29
(Diag. #29) Sliding Switch
$33.16
474-51
(Diag. #51) Regulating Nut
$22.21
474-52
(Diag. #52) Thrust Bearing Sleeve
$27.97
474-53
(Diag. #53) Spring Ring
$6.35
474-54
(Diag. #54) Housing Cover
$103.95
474-55
(Diag. #55) Pressure Rod
$34.55
474-56
(Diag. #56) Eye Spring
$2.84
474-57
(Diag. #57) Nut for Retaining Spring
$0.71
474-58
(Diag. #58) Fork
$160.65
474-59
(Diag. #59) Retaining Spring
$11.21
474-60
(Diag. #60) Screw for Retaining Spring
$0.57
474-61
(Diag. #61) Yoke - Left
$45.36
474-62
(Diag. #62) Yoke - Right
$45.36
474-63
(Diag. #63) Nut
$0.57
474-64
(Diag. #64) Tooth Lock Washer
$0.95
474-65
(Diag. #65) Fulcrum Pin
$34.26
474-66
(Diag. #66) Bearing Bush for Oscillating
$15.12
474-67
(Diag. #67) Lower Housing Section Assembly
$151.20
474-69
(Diag. #69) O ring - Rear Shaft Bushing
$1.13
474-70
(Diag. #70) Felt Ring- Rear Shaft Bushing
$1.42
474-71
(Diag. #71) Grub Screw
$1.51
474-72
(Diag. #72) Hexagonal Nut
$0.57
474-74
(Diag. #74) Crank Roller
$10.34
474-75
(Diag. #75) Eccentric
$22.68
474-76
(Diag. #76) Spur Wheel With Shaft
$49.14
474-77
(Diag. #77) Shaft Bushing
$35.91
474-78
(Diag. #78) Cylinder Screw
$0.71
474-79
(Diag. #79) Screw for Blade
$2.42
474-80
(Diag. #80) Blade Screwdriver
$15.12
