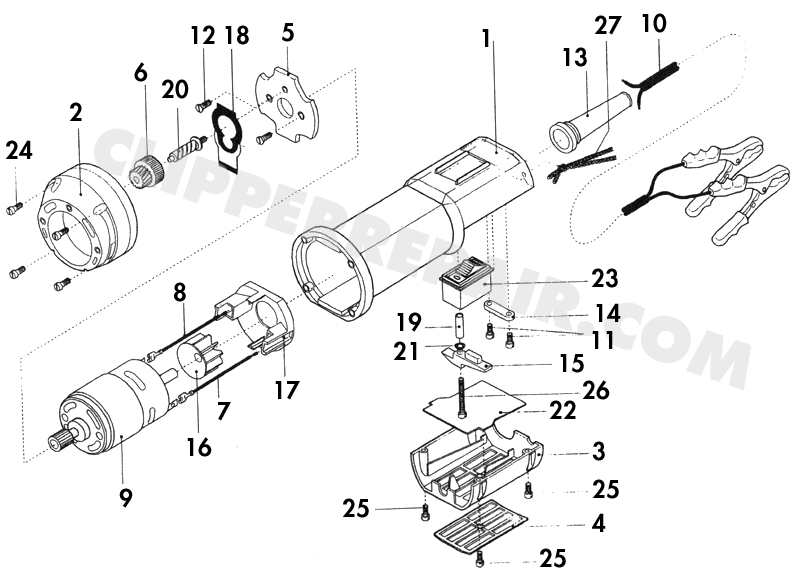

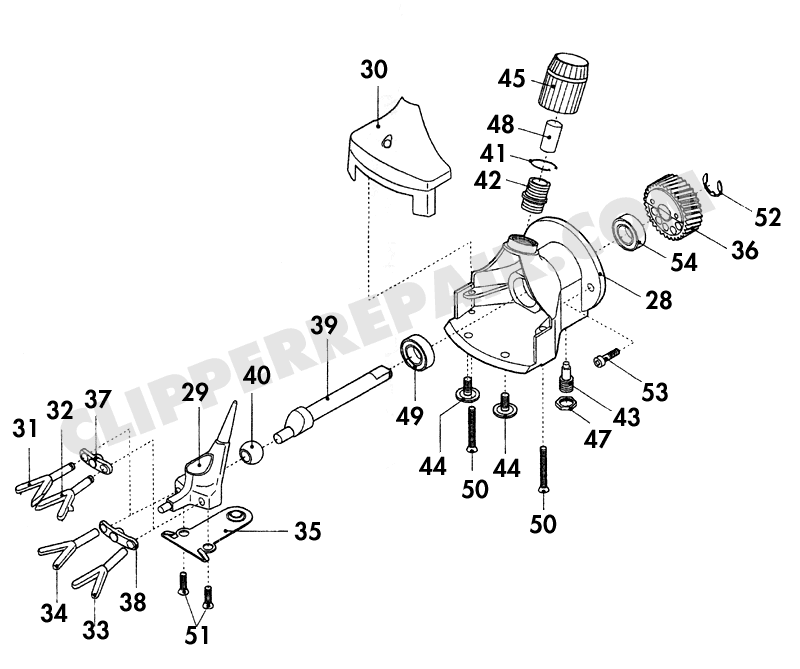

Replacement Parts for Heiniger Xtra Sheep Shear (712-670)
717-708
(Diag. #1) Shear Head Housing
$57.35
717-701
(Diag. #2) Swivelling Fork
$132.34
717-724
(Diag. #3) Housing Cover
$20.24
717-704
(Diag. #4) Prong Right Narrow (Yoke)
$31.56
717-705
(Diag. #5) Prong Left Narrow (Yoke)
$31.56
717-706
(Diag. #6) Prong Left Wide- Standard (Yoke)
$41.87
717-707
(Diag. #7) Prong Right Wide- Standard (Yoke)
$41.87
717-709
(Diag. #8) Tension Link Spring
$30.87
717-711
(Diag. #9) Gear
$27.81
717-712
(Diag. #10) Gauge Plate Narrow
$24.80
717-713
(Diag. #11) Gauge Plate Wide- Standard
$25.47
717-715
(Diag. #12) Crank Spindle
$31.54
717-716
(Diag. #13) Crank Roller
$20.64
717-717
(Diag. #14) Tension Lock Spring
$1.89
717-718
(Diag. #15) Threaded Bushing
$25.31
717-719
(Diag. #16) Fulcrum Post
$5.61
717-720
(Diag. #17) Comb Screw
$8.23
717-702
(Diag. #18) Tension Nut
$30.79
717-722
(Diag. #19) Locknut
$4.62
717-723
(Diag. #20) Sliding Sleeve
$21.27
717-725
(Diag. #21) Ball Bearing
$29.21
717-726
(Diag. #22) Screw- Head Hsg. Long
$0.82
717-727
(Diag. #23) Screw- Head Hsg. Short
$1.26
706-524
(Diag. #24) Circlip Benzing (E-Clip)
$1.70
706-523
(Diag. #25) Screw- Head to Motor
$1.53
701-636
(Diag. #26) Ball Bearing
$14.41
701-824
(Diag. #28) Fillister Head Screw- Gearbox
$0.46
701-602
(Diag. #29) Gear Box
$21.80
701-613
(Diag. #30) Intermediate Gear
$55.06
701-615
(Diag. #31) Spindle
$6.83
701-612
(Diag. #32) Seal
$10.65
701-610
(Diag. #33) Centering Piece
$17.12
701-638
(Diag. #34) Spring Disc
$1.26
701-639
(Diag. #36) Circlip (Retaining Ring)
$0.90
701-608
(Diag. #37) Armature Fan
$9.68
701-625
(Diag. #38) Rotor (Armature)
$315.08
701-637
(Diag. #39) Spring Disc
$1.26
701-635
(Diag. #40) Ball Bearing
$15.25
701-620
(Diag. #41) Screw- Fields
$1.22
701-616
(Diag. #42) Washer- Field Screw
$0.74
701-614
(Diag. #43) Distance Bush
$1.76
701-617
(Diag. #44) Air Stream Leading Piece
$4.58
701-629
(Diag. #45) Stator (Fields)
$85.03
701-600-25A
(Diag. #46) Housing - Motor
$66.65
701-633
(Diag. #47) Brush/Spring/Protection Cap (SET OF TWO)
$19.34
701-634
(Diag. #48) Brush Cap
$1.72
701-679
(Diag. #49) Cable with Plug- Original Equip.
$44.79
712-111
(Diag. #50) Cable Sleeve
$5.00
701-643
(Diag. #51) PT Screw- Overload
$0.46
701-603
(Diag. #52) Switch housing
$40.30
701-621
(Diag. #53) Retaining Screw- Switch Housing
$2.25
701-676
(Diag. #54) Overload Security Switch
$41.16
701-631
(Diag. #55) Main Switch
$28.27
701-669
(Diag. #56) Capacitor
$12.16
701-671
(Diag. #57) Cable Grip
$1.66
701-619
(Diag. #58) Switch Grip
$1.89
701-642
(Diag. #59) Screw- Switch Grip
$2.88
701-627
(Diag. #60) Dust Cover
$4.87
701-605
(Diag. #61) Lower Switch Housing
$13.44
701-641
(Diag. #62) Screw- Air Filter/Switch Hsg.
$0.46
701-600-30A
(Diag. #63) Air Filter
$12.16
