Replacement Parts for Andis Cordless Rechargeable Clipper (68005)

Scroll down to view parts list.

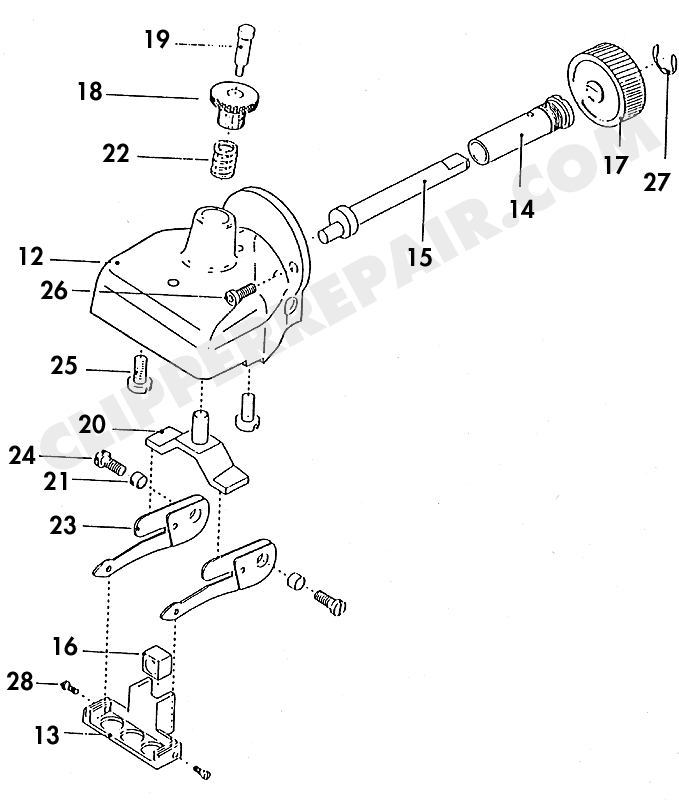

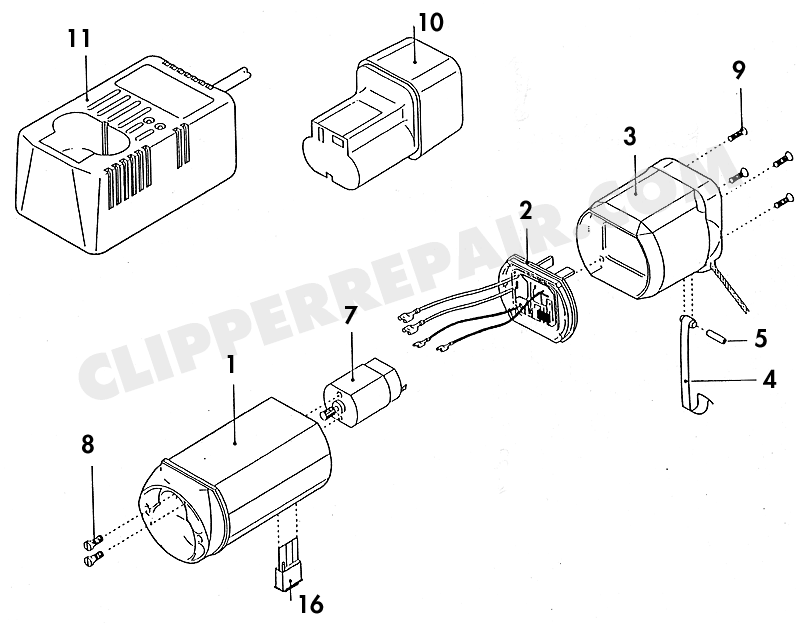

Andis Cordless Rechargeable Clipper diagram (large) #1 Andis Cordless Rechargeable Clipper diagram (large) #2

701-701 (Diag.1) Motor Housing
$25.44
701-702 (Diag.2) Connection Plate
$60.76
701-703 (Diag.3) Rear Housing
$29.84
701-704 (Diag.4) Battery Retaining Clip
$9.68
701-705 (Diag.5) Tension Pin
$1.20
701-706 (Diag.6) Switch
$13.56
701-709 (Diag.7) Motor
$55.22
701-711 (Diag.8) Screw- Motor Hsg. to Motor
$0.94
701-712 (Diag.9) Screw- Rear Hsg. to Conn. Plate
$1.58
70022 (Diag.10) Battery Pack
$122.38
70019 (Diag.11) Battery Charger
$168.34
706-501 (Diag.12) Clipper Head Casing
$64.20
706-503 (Diag.13) Cutter Driving Carrier (Yoke)
$68.00
706-505 (Diag.14) Crank Spindle Sleeve
$15.84
706-506 (Diag.15) Crank Spindle
$16.10
706-507 (Diag.16) Crank Drive Block
$6.90
701-710 (Diag.17) Gear
$31.82
706-509 (Diag.18) Tention Screw
$8.42
706-510 (Diag.19) Distance Screw
$4.02
706-511 (Diag.20) Pressure Plate
$8.68
706-514 (Diag.21) Centering Ring- Head Springs
$2.00
706-517 (Diag.22) Spiral Spring
$2.70
706-518 (Diag.23) Laminated Springs
$14.22
706-520 (Diag.24) Screw- Head Springs
$0.62
706-521 (Diag.25) Blade Screw
$1.40
701-713 (Diag.26) Screw- Head to Motor
$1.46
706-524 (Diag.27) Circlip Benzing (E-Clip)
$1.26
706-525 (Diag.28) Screw- Drive Yoke
$1.62
