Replacement Parts for Andis (BGS) Excel Ultra Clipper Black (63120)

Scroll down to view parts list.

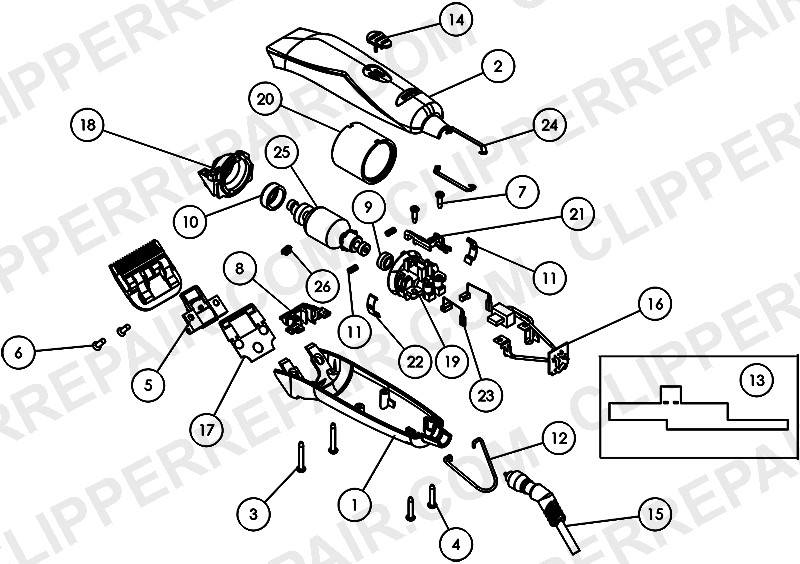

Andis (BGS) Excel Ultra Clipper Black diagram #1

63120-01 (Diag.1) Housing Lower - Black
$7.10
63120-02 (Diag.2) Housing - Upper Printed (Black)
$5.00
63120-03 (Diag.3) Screw - Front Housing (2 Required)
$0.34
63120-04 (Diag.4) Screw - Rear Housing (2 Required)
$0.12
63120-05 (Diag.5) Hinge Assembly
$9.00
63120-06 (Diag.6) Screw - Blade Hinge (2 Required)
$0.32
63120-07 (Diag.7) Screw - Circuit Board / Speed Control (2 Required)
$0.32
63120-08 (Diag.8) Blade Drive Assembly
$9.88
63120-09 (Diag.9) Bearing Cup - Small
$0.32
63120-10 (Diag.10) Bearing Cup - Large
$0.32
63120-11 (Diag.11) Brush Spring
$0.28
63120-12 (Diag.12) Hanger Bail
$3.70
63120-13 (Diag.13) Oil Seal
$1.10
63120-14 (Diag.14) Switch Button
$0.96
63129-15 (Diag.15) Cord with Adapter/Transformer
$42.16
63120-16 (Diag.16) Electrical Assembly / Circuit Board with Switch
$8.70
63120-17 (Diag.17) Hair Gaurd (Not Available at This Time)
$3.25
63120-18 (Diag.18) Motor Frame - Front
$2.80
63120-19 (Diag.19) Motor Frame - Rear
$2.26
63120-20 (Diag.20) Magnetized Field Assembly
$18.00
63120-21 (Diag.21) Switch Actuator
$1.10
63120-22 (Diag.22) Retainer Clip - Brush (2 Required)
$0.42
63120-23 (Diag.23) Carbon Brush w/Shunt (2 Required)
$1.74
63120-24 (Diag.24) Motor Frame Clip
$0.86
63120-25 (Diag.25) Armature Assembly
$34.66
63120-26 (Diag.26) Spring - Booster / Blade Retaining
$0.40
63120-27 (Diag.27) Blade Bracket / Socket
$2.44
63120-28 (Diag.28) Tension Spring - Blade
$1.40
63120-29 (Diag.29) Guide - Blade
$0.20
63120-30 (Diag.30) Screw - Blade (2 Required)
$0.66
