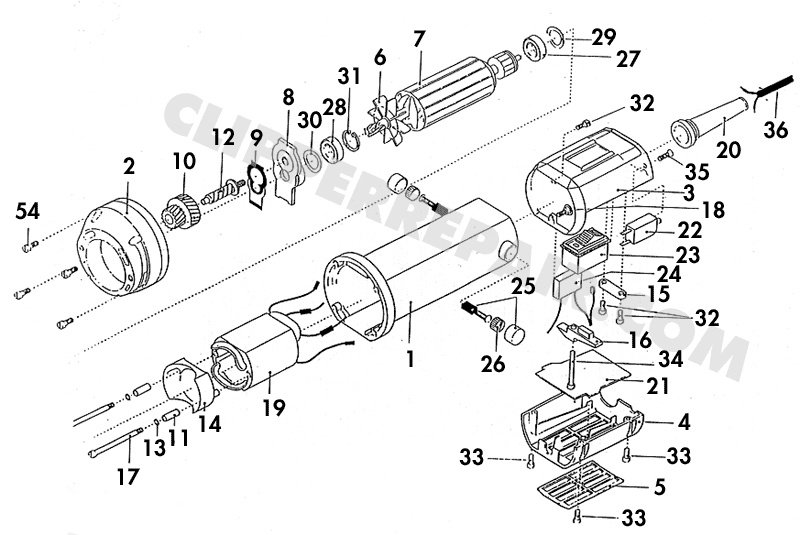

Replacement Parts for Andis LG-C Cattle Clipper (68015)
701-601
(Diag. #1) Motor Housing
$66.65
701-602
(Diag. #2) Gear Box
$21.80
701-603
(Diag. #3) Switch housing
$40.30
701-605
(Diag. #4) Lower Switch Housing
$13.44
701-607
(Diag. #5) Air Filter
$12.16
701-608
(Diag. #6) Armature Fan
$9.68
701-625
(Diag. #7) Rotor (Armature)
$315.08
701-610
(Diag. #8) Centering Piece
$17.12
701-612
(Diag. #9) Seal
$10.65
701-613
(Diag. #10) Intermediate Gear
$55.06
701-614
(Diag. #11) Distance Bush
$1.76
701-615
(Diag. #12) Spindle
$6.83
701-616
(Diag. #13) Washer- Field Screw / Switch Grip
$0.74
701-617
(Diag. #14) Air Stream Leading Piece
$4.58
701-671
(Diag. #15) Cable Grip
$1.66
701-619
(Diag. #16) Switch Grip
$1.89
701-620
(Diag. #17) Screw- Fields
$1.22
701-621
(Diag. #18) Retaining Screw- Switch Housing
$2.25
701-629
(Diag. #19) Stator (Fields)
$85.03
712-111
(Diag. #20) Cable Sleeve
$5.00
701-627
(Diag. #21) Dust Cover
$4.87
701-676
(Diag. #22) Overload Security Switch
$41.16
701-631
(Diag. #23) Main Switch
$28.27
701-669
(Diag. #24) Capacitor
$12.16
701-633
(Diag. #25) Brush/Spring/Protection Cap (SET OF TWO)
$19.34
701-634
(Diag. #26) Brush Cap
$2.50
701-635
(Diag. #27) Ball Bearing - Rear
$15.25
701-636
(Diag. #28) Ball Bearing - Front
$14.41
701-637
(Diag. #29) Spring Disc - Rear
$1.26
701-638
(Diag. #30) Spring Disc - Front
$1.26
701-639
(Diag. #31) Circlip (Retaining Ring)
$0.90
701-640
(Diag. #32) Screw- Switch Hsg. / Cable Grip / Gear Box
$0.65
701-641
(Diag. #33) Screw- Air Filter / Switch Hsg.(4 Required)
$0.46
701-642
(Diag. #34) Screw- Switch Grip
$2.88
701-643
(Diag. #35) PT Screw- Overload
$0.46
701-679
(Diag. #36) Cable with Plug- Original Equip.
$44.79

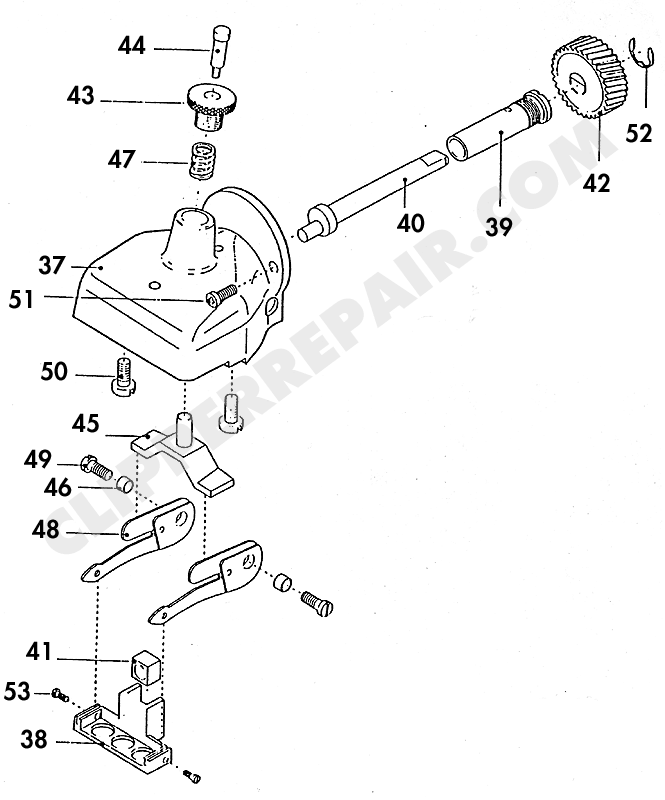

706-501
(Diag. #37) Clipper Head Casing
$113.51
706-503
(Diag. #38) Cutter Driving Carrier (Yoke)
$71.40
706-505
(Diag. #39) Crank Spindle Sleeve
$18.90
706-506
(Diag. #40) Crank Spindle (Crankshaft)
$21.63
706-507
(Diag. #41) Crank Drive Block
$7.25
706-508
(Diag. #42) Gear
$27.81
706-509
(Diag. #43) Tension Screw
$11.03
706-510
(Diag. #44) Distance Screw
$5.25
706-511
(Diag. #45) Pressure Plate
$9.11
706-514
(Diag. #46) Centering Ring- Head Springs
$2.10
706-517
(Diag. #47) Spiral Spring
$2.84
706-518
(Diag. #48) Laminated Springs
$14.93
706-520
(Diag. #49) Screw- Head Spring
$1.06
706-521
(Diag. #50) Blade Screw
$1.47
706-523
(Diag. #51) Screw- Head to Motor (2 Required)
$1.53
706-524
(Diag. #52) Circlip Benzing (E-Clip)
$1.70
706-525
(Diag. #53) Screw- Drive Yoke (2 Required)
$1.70
701-824
(Diag. #54) Fillister Head Screw- Gearbox (4 Required)
$0.46
