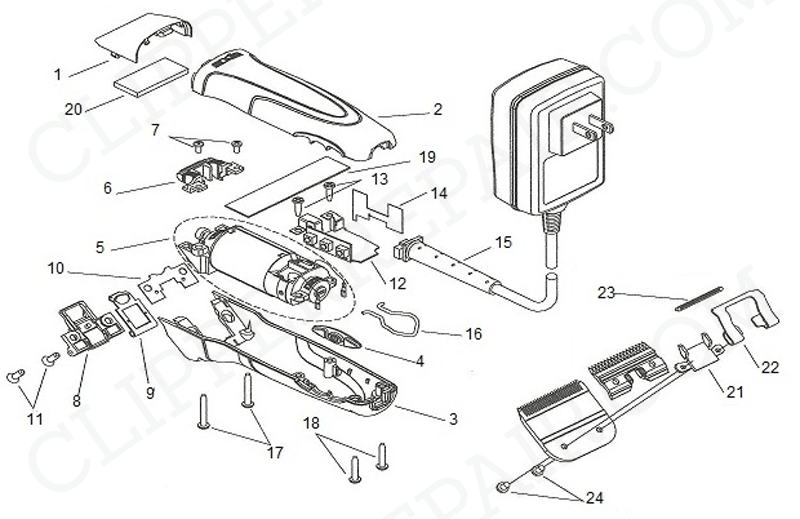

Replacement Parts for Andis (SMC-2) SMX Experience 2 Speed Clipper Black (63230)
65534
(Diag. #1) Drive Cap - Metallic Black
$1.64
65532
(Diag. #2) Upper Housing - Metallic Black
$2.98
65533
(Diag. #3) Lower Housing - Metallic Black
$2.63
65536
(Diag. #4) Switch Actuator
$3.11
63230-05C
(Diag. #5) Brush Retainer Clip (2 Required) - Motor (Not Shown)
$0.44
63230-05B
(Diag. #5) Brush Spring (2 Required) - Motor (Not Shown)
$0.29
63230-05A
(Diag. #5) Brush with Wire (2 Required) - Motor (Not Shown)
$1.83
13618
(Diag. #5) Motor Assembly
$85.83
S20656
(Diag. #6) Blade Drive Assembly
$10.37
15766
(Diag. #7) Blade Drive Screw
$0.34
28194
(Diag. #8) Hinge Assy- Oster 76,89 Compatible
$21.00
64537
(Diag. #9) Blade Lock / Latch
$1.76
64535
(Diag. #10) Lock Keeper
$1.39
27864
(Diag. #11) Blade Hinge Screw
$0.34
260001
(Diag. #12) Circuit Board / Speed Control (2 Speed Version)
Out of Stock
65828
(Diag. #13) Screw- Switch Assbly.
$0.34
60701
(Diag. #14) Insulator - Circuit Board / Speed Control
$0.25
25542
(Diag. #16) Hanger Bail
$0.86
64606
(Diag. #17) Front Housing Screw (Long)
$0.36
60804
(Diag. #18) Screw - Rear Housing (2 Required)
$0.48
60803
(Diag. #19) Oil Seal
$0.84
17091
(Diag. #20) Self-Adhesive Foam Pad - Drive Cap
$0.95
64003
(Diag. #21) Blade Bracket / Socket
$1.85
64013
(Diag. #22) Tension Spring
$1.47
64027
(Diag. #23) Guide - Blade
$0.25
64139
(Diag. #24) Screw - Blade (2 Required)
$0.69
65416
(Diag. #25) Sleeve (Silicone) - Transformer - Out of Stock
$19.59
