Replacement Parts for Oster EW311A 2/1/2 (EW311A)

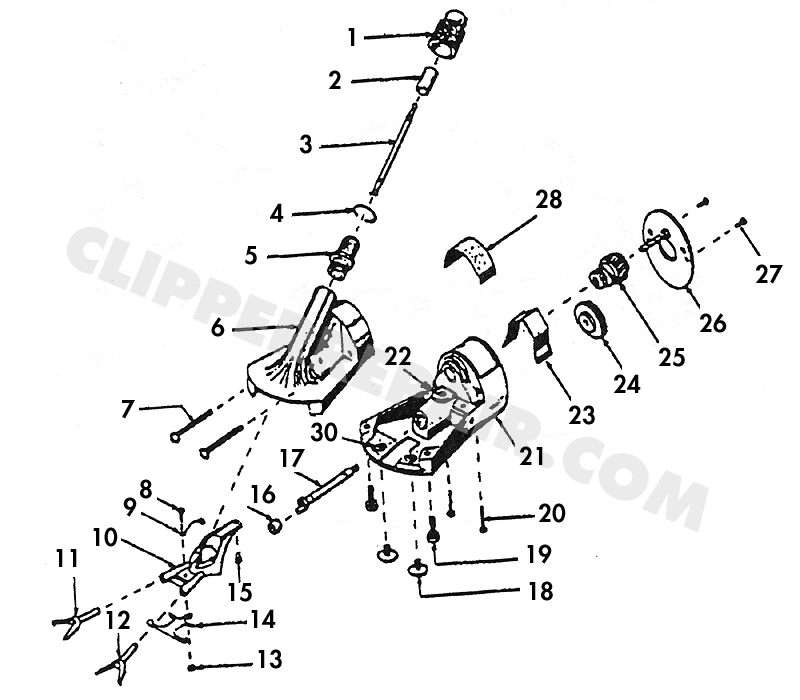

55680
(Diag. #1) Tension Nut
$16.51
55688
(Diag. #2) Tension Cup Nut
$5.65
44916
(Diag. #3) Tension Pin
$6.11
55681
(Diag. #4) Tension Spring
$1.05
55696
(Diag. #5) Threaded Bushing
$27.81
44917-005
(Diag. #6) Cover- Head Housing
$77.55
42139
(Diag. #7) Screw- Head to Motor
$1.04
42106-010
(Diag. #8) Screw-Tension Pin Spring
$1.04
55689
(Diag. #9) Retaining Spring- Tension Pin
$1.56
42665-005
(Diag. #10) Fork
$68.25
42663
(Diag. #11) Right Yoke
$31.50
42664
(Diag. #12) Left Yoke
Out of Stock
42445
(Diag. #13) Nut- Tension Pin Spring Screw
$1.04
44998
(Diag. #14) Retaining Spring- Yokes - (This will not fit the 3 inch shear head.)
$5.25
55687-001
(Diag. #15) Fulcrum Pin
$2.21
55677
(Diag. #16) Crank Roller
$14.72
44909
(Diag. #17) Crankshaft - Call for Availability
$41.48
42187
(Diag. #18) Comb Screw
$2.75
42110
(Diag. #19) Screw- Head Housing (Large)
$1.04
42109-005
(Diag. #20) Screw- Head Housing (Small)
$1.04
44907-005
(Diag. #21) Lower Housing- Head - Call for Availability
$105.59
55678
(Diag. #22) Fulcrum Seat
$5.15
44993
(Diag. #23) Gear Insulator
$2.61
44910
(Diag. #24) Crankshaft Gear
$19.68
42883
(Diag. #25) Intermediate Gear Assbly
$32.51
44911-005
(Diag. #26) Gear Case Cover
$7.56
44915
(Diag. #27) Screw- Gear Case Cover
$1.04
44908
(Diag. #30) Insert Nut
$2.09
45538
(Diag. #31) Screen
$1.04
42899
(Diag. #32) Retaining Clip
$2.61

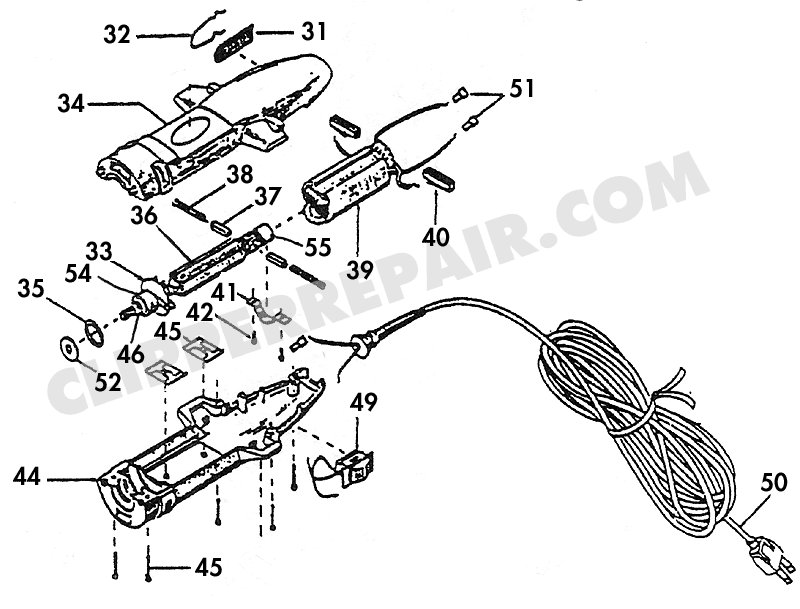

58017
(Diag. #33) Armature Fan
$6.28
42884
(Diag. #34) Upper Housing-510 Black
Out of Stock
42891
(Diag. #35) O-Ring for Bearing
$1.04
8018E
(Diag. #36) Armature Assembly w/Exchange- No Bearings
$185.85
8018
(Diag. #36) Armature Assembly wo/Exchange- No Bearings
$199.50
42435
(Diag. #37) Brush
$3.14
42894
(Diag. #38) Brush Spring
$1.04
42874
(Diag. #39) Field Assbly w/o Exchange
$133.35
42875
(Diag. #40) Brush Tube
$3.14
42892
(Diag. #41) Bearing Retainer
$1.04
42186
(Diag. #42) Screw- Bearing Retainer
$1.04
42897
(Diag. #43) Field Spring
$1.56
42888
(Diag. #44) Lower Housing-510 Black
$40.95
42109
(Diag. #45) Screw- Housing
$1.04
45578
(Diag. #46) Oil Slinger
$2.37
55683
(Diag. #49) Slide Switch-510 Clipper
$22.29
110735
(Diag. #50) Cord Set
$20.73
55136
(Diag. #51) Connector- Cord
$0.32
45591
(Diag. #52) Washer- Rubber Sealing
$1.04
42889
(Diag. #54) Front Armature Bearing
$21.86
42890
(Diag. #55) Rear Armature Bearing
$21.86
