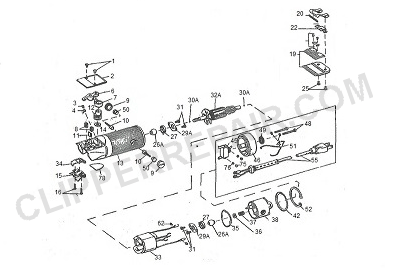

Replacement Parts for Oster GroomMaster (78015-010)
41664
(Diag. #1) Screw
$1.04
58867
(Diag. #2) Cover Plate
$2.61
41676
(Diag. #3) Oiler
$3.14
42563
(Diag. #4) Oil Wick
$1.04
58914-005
(Diag. #6) Lever - Blade Drive
$4.99
45515
(Diag. #7) Link
$2.23
41723
(Diag. #8) Lever Grease Seal
$0.38
42584-025
(Diag. #10) Brush & Spring Assbly(1pr.)
$4.43
42566
(Diag. #11) Thrust Plate
$0.32
58908
(Diag. #12) Gear
$16.19
58909
(Diag. #13) Housing
$32.87
58543
(Diag. #14) Thrust Washer- Gear
$0.32
58990
(Diag. #15) Hinge Assy
$7.34
41665
(Diag. #16) Screw- Hinge Assbly.
$0.41
42571
(Diag. #20) Blade Guide
$1.07
58982
(Diag. #22) Socket
$3.65
59308
(Diag. #23) Tention Spring
$3.14
42555
(Diag. #25) Blade Screw
$1.04
57070
(Diag. #26) Bearing
$1.06
42568
(Diag. #27) Washer-Felt
$1.04
58519
(Diag. #29) Bearing Retainer
$1.04
41719
(Diag. #30) Ball
$1.41
42872
(Diag. #31) Screw
$1.04
58097
(Diag. #32) Armature Assy
$37.08
84936
(Diag. #33) Field Assembly
$30.83
44938
(Diag. #34) Blade Lock / Latch
$5.04
42557
(Diag. #35) Locating Ring
$3.14
42559
(Diag. #36) Thrust Spring Cup
$1.76
42562
(Diag. #37) Thrust Spring
$0.41
58006
(Diag. #38) Motor End Frame Assy
$13.65
42570
(Diag. #42) Retaining Cup
$1.04
58911
(Diag. #46) End Cap
$11.09
41756
(Diag. #47) Lockwasher
$1.04
42574
(Diag. #48) Screw
$1.04
41683
(Diag. #49) Switch Nut
$1.04
42614
(Diag. #50) Brush Retainer Assbly
$2.04
42573
(Diag. #51) Bale
$1.79
42551
(Diag. #52) Retaning Ring
$2.61
110737
(Diag. #55) Cord/Plug Assbly.
$7.30
42564
(Diag. #62) Screw- Field Contact
$1.04
42843
(Diag. #75) Switch Screw
$1.04
41738
(Diag. #76) Lockwasher
$1.04
45588
(Diag. #77) Blade Guard (Not Shown)
$1.83
