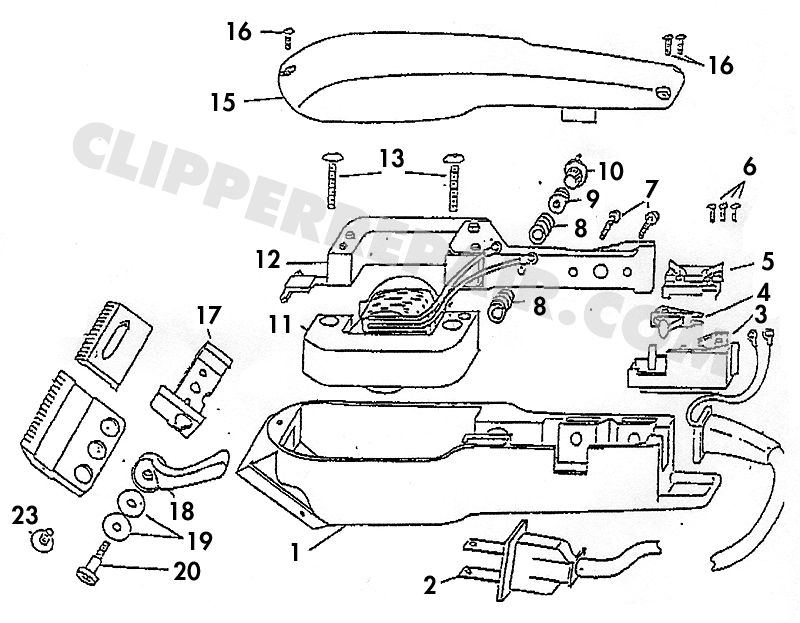

Replacement Parts for Wahl Iron Horse Plus Clipper (8582-100)
8582-01
(Diag. #1) Case Assembly
$28.29
8582-02
(Diag. #2) Cord
$20.83
8582-03
(Diag. #3) Switch Base
$1.97
8582-04
(Diag. #4) Switch Trigger
$2.52
8582-05
(Diag. #5) Switch Cover
$0.42
8582-06
(Diag. #6) Terminal Switch Screw (2 Required)
$0.49
8582-07
(Diag. #7) Armature Bolt Screw (2 Required)
$0.42
8582-08
(Diag. #8) Tuning Spring (2 Required)
$0.58
8582-09
(Diag. #9) Power Screw and Cap Combined
$0.42
8582-11
(Diag. #11) Field Coil - (Does not include lead wires - See #24)
$8.46
8582-12
(Diag. #12) Armature
$15.94
8582-13
(Diag. #13) Coil Screw (2 Required)
$0.42
94104-400
(Diag. #14) Foam Hair Guard in Diagram (Not Shown)
$0.27
8582-15
(Diag. #15) Lid - Black
$2.98
8582-16
(Diag. #16) Case Screw (3 Required)
$0.42
8582-17
(Diag. #17) Blade Slide
$2.81
8582-18
(Diag. #18) Blade Lever
$2.18
8582-21
(Diag. #21) Foam Pad (Not Shown)
$0.40
8582-23
(Diag. #23) Blade Screw
$0.30
8582-24
(Diag. #24) Lead Wire from Field Coil - (2 Required)
$0.38
8582-25
(Diag. #25) Blade Set - Size 30-15-10
$23.26
8582-26
(Diag. #26) Blade Set - Size 30-15-10 (Wide)
$25.81
8582-27
(Diag. #27) Blade Set Size 40-30
$23.26
