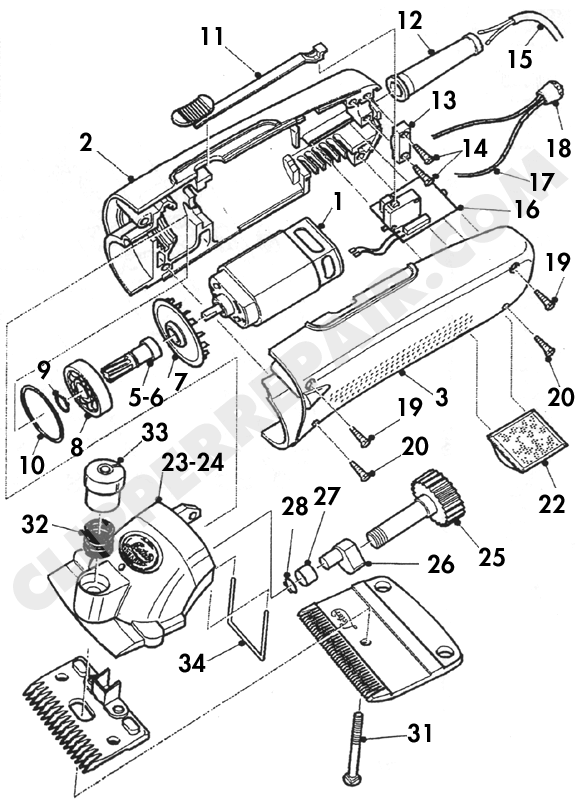

Replacement Parts for Lister Star Clipper (258-34500)
34500-04
(Diag. #4) Gearshaft, Fan,Bearing Assembly (Includes #5 - #10)
$86.57
34500-05
(Diag. #5) Gearshaft
$52.10
34500-06
(Diag. #6) Gearshaft Insert
$5.17
34500-07
(Diag. #7) Fan
$4.49
34500-08
(Diag. #8) Ball Bearing
$18.17
34500-09
(Diag. #9) Circlip / Retaining Ring
$1.81
34500-10
(Diag. #10) O-Ring
$2.94
34500-11
(Diag. #11) Switch Lever
$9.24
34500-12
(Diag. #12) Cord Protector / Strain Relief
$6.62
34500-13
(Diag. #13) Clamp - Power Cord
$5.17
34500-14
(Diag. #14) Screw- Cable Clamp
$1.03
34500-15
(Diag. #15) Power Cord
$41.74
34500-16
(Diag. #16) Switch / Circuit Board
$139.82
34500-17
(Diag. #17) Wrist Cord
$3.63
34500-18
(Diag. #18) End - Wrist Cord
$1.85
34500-19
(Diag. #19) Screw - Housing Set (Upper)
$1.11
34500-20
(Diag. #20) Screw - Housing Set (Lower)
$1.64
34500-22
(Diag. #22) Air Filter w/ Foam
Out of Stock
34500-23
(Diag. #23) Head Assembly (Includes #23-#28)
$186.14
34500-24
(Diag. #24) Head Housing
$106.47
34500-25
(Diag. #25) Gear (White) & Shaft Assembly
$87.15
34500-26
(Diag. #26) Crank Head
$50.84
34500-27
(Diag. #27) Crank Roller
$30.39
34500-28
(Diag. #28) Crank Roller Spring
$1.83
34500-32
(Diag. #32) Tension Spring
$3.38
34500-33
(Diag. #33) Tension Nut
$8.40
34500-34
(Diag. #34) Spring Clip
$2.35
34500-35
(Diag. #35) Comb Peg and Metal Pin (Not Shown)
$3.18
34500-37
(Diag. #37) Name Badge
$3.47
34500-38
(Diag. #38) Yoke (Black Plastic) - Cutter Blade - Out of Stock No ETA
$2.77
34500-38A
(Diag. #38) Yoke (New Style Metal) - Cutter Blade
$10.37
34500-39
(Diag. #39) Screw - Blade Yoke (4 Required)
$0.21
